Short answer: only when the generations match. 2022 and newer Tundra wheels bolt straight onto a 2024 and newer Tacoma. They do not fit a 2005 to 2023 Tacoma, and 2007 to 2021 Tundra wheels fit no Tacoma at all. Every Tacoma and the 2000 to 2006 and 2022+ Tundras share the same 6x139.7 bolt pattern, which is why so many people assume the wheels swap. The bolt pattern is not what decides it. Hub bore and stud thread do, and Toyota changed both when it moved the Tacoma to the Tundra's platform for 2024. Most answers stop at "same bolt pattern." That is half of a fitment check.
I'm Dennis Feldman, and wheel interchange questions are most of my week. Tundra take-off wheels are everywhere, they are cheap, and they look right on a Tacoma. The catch is that a 2022 Tundra wheel and a 2019 Tacoma hub disagree by 11 millimeters at the center, and no amount of torque fixes that. Here is how to tell which side of the line your truck is on before you hand over cash for a set.
Tundra Wheels From |
1995-2004 Tacoma |
2005-2023 Tacoma |
2024+ Tacoma |
|---|---|---|---|
2000-2006 Tundra (6x139.7, 106.1 mm bore, M12 studs) |
Yes on six-lug trucks; Toyota shared some factory wheels between them |
Yes; check offset and caliper clearance |
Not as-is; needs hub rings and M14 lug nuts, and the lug holes must clear M14 studs |
2007-2021 Tundra (5x150) |
No |
No |
No |
2022+ Tundra (6x139.7, 95.1 mm bore, M14 studs) |
No; bore too small for the hub |
No; bore too small for the hub |
Yes, direct bolt-on with the factory lug nuts |
Find your Tacoma's column, then your Tundra wheel's row. If the answer is no, the second table shows what to buy instead.
Your Tacoma |
Hub Bore to Look For |
Lug Nuts |
What Most Aftermarket Wheels Need |
|---|---|---|---|
2005-2023 |
106.1 mm, or larger with a hub ring |
M12 x 1.5, matched to the wheel's seat |
Usually nothing; most 6x139.7 truck wheels are bored 106 mm or larger |
2024+ |
95.1 mm, or larger with a hub ring |
M14 x 1.5, matched to the wheel's seat |
A 106.1-to-95.1 mm hub-centric ring set |
Mostly, which is the trap. Six-lug Tacomas have used 6x139.7 (6 on 5.5 inches) since 1995, and so did the first-generation Tundra from 2000 to 2006. For 2007, Toyota moved the Tundra to 5x150, and it stayed there through 2021. For 2022, the third-generation Tundra went back to 6x139.7 on the new TNGA-F platform. The fourth-generation Tacoma joined that platform for 2024.
So three of the four Tundra generations of wheels in the take-off market share a bolt circle with your Tacoma. Only one of those combinations bolts on without parts or caveats. The rest of this guide is about the two numbers that separate them. If you want the full list of trucks on this pattern, our 6x139.7 bolt pattern guide covers it, and the 2007-2021 Tundra's pattern has its own breakdown in what vehicles have a 5x150 bolt pattern.
One more check before you shop: some early two-wheel-drive Tacomas left the factory with five-lug hubs. Count your lugs. If you have five, none of this applies.
Yes. This is the one clean swap. Both trucks use 6x139.7, a 95.1 mm hub bore, and M14 x 1.5 studs, and wheel fitment databases list factory offsets of about +60 mm for both. Owners on the Tacoma forums have mounted 18-inch and 20-inch Tundra wheels on 2024 trucks and report a direct bolt-on. The owner who first confirmed it used his factory Tacoma lug nuts and says the wheels sit in the wheel well the same as stock.
That near-identical offset is the real reason this swap is popular. The bulk of aftermarket 6x139.7 truck wheels run offsets between about -12 mm and +18 mm, and very few go past +40, so they push the tire well outboard of where Toyota put it. If you want the factory stance with a different look, Tundra wheels are one of the few ways to get it.
Tundra wheels often come with Tundra tires, and those are taller. A 265/70R18 Tundra tire stands about 32.6 inches; a 265/65R18 Tacoma tire is about 31.6 inches. That is roughly 3 percent, which means your speedometer reads about 2 mph slow at 65. One owner who mounted 20-inch Tundra take-offs measured about an inch of extra height and a speedometer about 1 mph low at highway speed.
Tundra wheels are built for a heavier truck, and one owner who made the swap noted they weigh about 10 pounds more per wheel. That is not a safety problem; the extra load capacity is a margin, not a risk. It does add unsprung weight you will feel slightly in ride and braking.

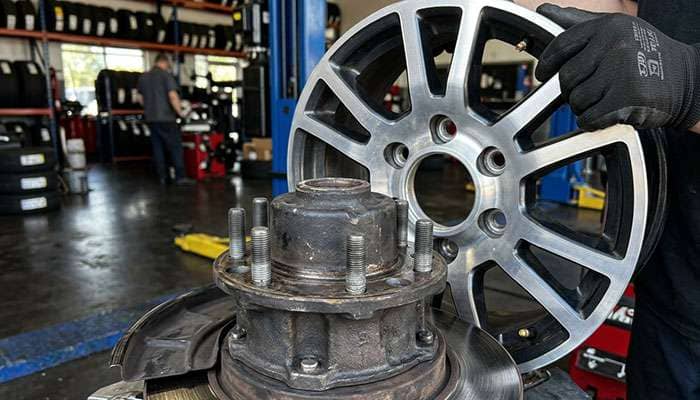

Because the hole in the middle of the wheel is smaller than the hub it has to go over. The 2005-2023 Tacoma's hub is 106.1 mm across. The 2022+ Tundra wheel's center bore is 95.1 mm. The wheel physically cannot seat against the hub face, so the lug nuts never pull it flat.
This is the part forum threads tend to bury. The bolt circle lines up perfectly, the studs line up with the holes, and the wheel still hangs off the hub. A shop could machine the bore larger, but you would be cutting a factory wheel's centering surface to fit a truck it was never designed for, and the stud holes are sized for M14 hardware, not the Tacoma's M12 studs. I would not run it, and I would not let a customer run it.
The reverse problem is easier to solve. A wheel with a bore larger than the hub can be centered with a hub-centric ring, which is exactly how most aftermarket wheels go on a 2024+ Tacoma. A bore that is too small has no ring that fixes it. Our guide to hub-centric vs. lug-centric wheels explains why that centering matters at highway speed.
On a six-lug 1995-2023 Tacoma, generally yes. The first-generation Tundra shares the Tacoma's 6x139.7 pattern, 106.1 mm hub bore, and M12 x 1.5 studs. Toyota even shared some factory wheels between them: the same 16x7 steel wheel was listed for 2000-2006 Tundras and 2001-2004 Tacomas.
The variable is offset. That 16x7 Tundra steel wheel runs about +15 mm. Wheel databases put factory Tacoma offsets from the 2016-2023 generation between roughly +10 and +40 mm depending on the wheel, so a first-gen Tundra wheel usually sits a bit farther out than stock. That can help a larger tire clear the upper control arm, or it can rub at full lock with a big tire. Test-fit with your tire size before you commit.
A lot of first-generation Tacoma owners swap in the larger first-gen Tundra front calipers. If your truck has them, 15-inch wheels are out, and not every 16-inch wheel clears. First-gen Tundra wheels came off trucks with those brakes, so they are among the safest choices for an upgraded truck.
Mounting a first-gen Tundra wheel on a 2024+ Tacoma means a 106.1-to-95.1 mm hub ring, M14 lug nuts that match the wheel's seat, and confirming the stud holes clear M14 studs. That is a lot of caveats for a wheel that is now at least 20 years old.
No. These Tundras use a 5x150 bolt pattern, with five lugs on a 150 mm circle. No Tacoma has ever used it. They are the most common Tundra wheels in the take-off market, which is why so many Tacoma owners buy a set by mistake.
You will see wheel adapters marketed to convert 6x139.7 to 5x150. I don't recommend them for a daily-driven truck. An adapter adds a second bolted joint, pushes the wheel outboard, and puts more leverage on the hub bearing. If you want the look of a second-gen Tundra wheel on a Tacoma, buy a 6x139.7 wheel in a similar style.

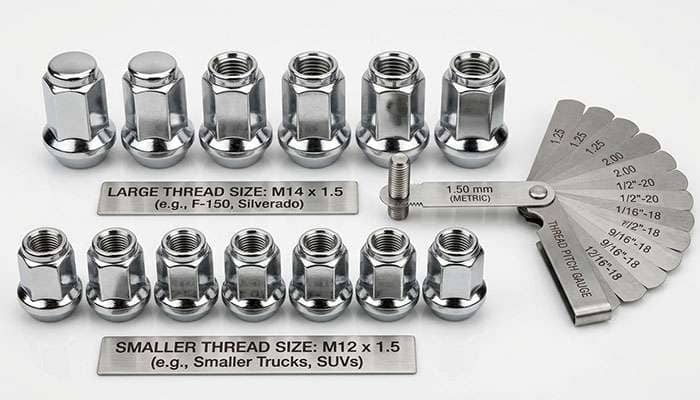

It depends on which Tacoma you have, and this is where swaps fail quietly. The 2005-2023 Tacoma uses M12 x 1.5 studs. The 2022+ Tundra and 2024+ Tacoma use M14 x 1.5. A lug nut from one will not thread onto the other, so you will find out about thread size immediately.
Seat type is the one that hides. The lug nut's seat is the surface that clamps against the wheel, and it has to match the shape machined into the wheel's lug hole: cone, ball, or flat with a washer. A mismatched seat feels tight on the wrench but touches the wheel on a thin ring instead of the full surface, and it can loosen as the wheel flexes. On a 2022+ Tundra wheel going onto a 2024+ Tacoma, owners report the factory Tacoma nuts work. On anything else, confirm the seat before you torque. Our lug nut seat types guide shows how to tell them apart.
On the 2022+ Tundra to 2024+ Tacoma swap, the sensors are the same type for U.S. trucks, operating at 315 MHz, but your Tacoma does not know their IDs. Plan on a TPMS ID registration at a shop with a scan tool, or the warning light stays on. If you are moving sensors into aftermarket wheels instead, our guide to TPMS sensors for aftermarket wheels covers what carries over.
Going the other way, 2024+ Tacoma wheels share the 2022+ Tundra's bolt pattern, bore, and studs, so they will bolt on. Whether they should is a load question. The Tundra is a heavier truck, and a wheel engineered for a midsize pickup may carry a lower load rating than the Tundra's axles need.
The check is simple. Find the gross axle weight rating on your Tundra's door placard, divide the heavier axle by two, and compare that to the load rating stamped on the back of the Tacoma wheel. If the wheel's rating is lower, it does not belong on that truck. Also check brake clearance on smaller diameters before you mount anything under 18 inches. Our wheel load rating guide walks through the math.
If you are shopping new instead of take-off, the same two numbers decide it, and the aftermarket makes it easier than the factory did.
Wheels bored 106 mm or larger. This is most of the 6x139.7 truck wheel market. They drop straight onto a 2005-2023 Tacoma's 106.1 mm hub, and on a 2024+ Tacoma they center with a 106.1-to-95.1 mm hub ring. Swap the lug nuts to the right thread and seat, and the same wheel works on either truck. If you think you might trade up a generation, this is the wheel to buy.
Wheels bored 95.1 mm. A smaller group of wheels is now machined specifically for the new platform. They fit a 2024+ Tacoma or 2022+ Tundra with no ring, and they will not go over a 2005-2023 Tacoma's hub, for the same reason the Tundra wheels won't.
Wheels bored 78.1 mm. Roughly one in five 6x139.7 wheels is bored for GM trucks and SUVs. Same bolt pattern, and it fits no Tacoma, because 78.1 mm is smaller than either Toyota hub. These are the wheels that get bought by mistake most often.
Load rating is rarely the limit on a Tacoma. Most 6x139.7 off-road wheels are rated around 2,400 to 2,500 pounds per wheel, and the number is stamped on the back. Offset is the choice that changes how the truck looks and what tire clears, so decide that last, once you know the bore and lug nuts are right.
The right Tundra wheel on the right Tacoma is a bargain. The wrong one costs more than a new set, and it costs in this order.
1. Vibration you can't balance out. A wheel that isn't centered on the hub, because the bore is wrong or a hub ring is missing, runs slightly off-center. Balancing the tire does not fix it, and you feel it at highway speed.
2. Lug nuts that work loose. Wrong seats or a wheel not sitting flat on the hub face lets the clamp load drop. Nuts back off over a few hundred miles.
3. Stretched or broken studs. With the hub not carrying the wheel, the studs carry it all. They stretch, then shear.
4. Hub and bearing damage. Run long enough and the hub face and bearing take the beating, and that is a parts-and-labor bill on top of the wheels.
5. A wheel off the truck. This is the end of that road, and it is not a cost measured in dollars.
6. The set you should have bought first. Every rung above ends with buying wheels that fit. Buying them first is the cheapest point on this list.
Do this before money changes hands, not in your driveway after.
Step 1: Confirm your Tacoma's generation. 2005-2023 and 2024+ are different trucks at the hub. Check the model year on your registration.
Step 2: Confirm the wheel's source generation. Ask the seller what year Tundra the wheels came off. Then count the lugs: five means 2007-2021, and you can stop here.
Step 3: Read the back of the wheel. Toyota and most aftermarket makers cast or stamp the size, offset, and often the part number on the inside of a spoke or the mounting pad. Match the offset to your goals.
Step 4: Measure the center bore. Use calipers across the center hole. It must be equal to or larger than your hub: 106.1 mm on a 2005-2023 Tacoma, 95.1 mm on a 2024+. Larger needs a hub ring. Smaller is a no.
Step 5: Match the lug nuts. M12 x 1.5 for 2005-2023, M14 x 1.5 for 2024+, with a seat that matches the wheel.
Step 6: Inspect the take-off tires. Used wheels often come with used tires. Check date codes, tread, and the sidewalls for cuts and bulges, and read our guide on tire sidewall damage and whether it is safe to drive if you see anything.
Step 7: Test-fit one wheel before mounting four. Hand-thread the nuts, spin the wheel, and check caliper clearance and full-lock steering clearance with the tire on. Then torque to spec in a star pattern and re-check torque after the first 50 miles.
If the Tundra wheels don't pass, browse our 6x139.7 wheels and filter by your Tacoma's hub bore and offset range.
"Same bolt pattern" gets you halfway. The 2022+ Tundra and 2024+ Tacoma share the pattern, the 95.1 mm hub, the M14 studs, and close to the same factory offset, so those wheels swap cleanly. A 2005-2023 Tacoma has a 106.1 mm hub and M12 studs, so 2022+ Tundra wheels won't seat, while 2000-2006 Tundra wheels usually will. And 2007-2021 Tundra wheels are 5x150, which fits no Tacoma ever built.
Check the generation, the bore, and the lug nuts before you buy, and test-fit one wheel before you mount four. That is ten minutes of work, and it is the difference between a bargain and a hub bearing.
Yes. Both trucks use a 6x139.7 bolt pattern, a 95.1 mm hub bore, and M14 x 1.5 studs, and owners report a direct bolt-on with no spacers or hub rings.
2000-2006 Tundra wheels generally fit a 2016-2023 Tacoma. 2022+ Tundra wheels do not, because their 95.1 mm center bore is smaller than the Tacoma's 106.1 mm hub. 2007-2021 Tundra wheels are 5x150 and do not fit.
Six-lug Tacomas use 6x139.7, also written 6x5.5. Some early two-wheel-drive Tacomas used five-lug hubs, so count your lugs.
No. The 2024+ Tacoma wheel's 95.1 mm center bore is smaller than the 106.1 mm hub on a 2016-2023 Tacoma, so it cannot seat on the hub.
For most aftermarket 6x139.7 wheels, yes. They are commonly bored to 106 mm or larger, and a 106.1-to-95.1 mm hub-centric ring centers them on the 2024+ Tacoma's hub. Factory Toyota TNGA-F wheels and wheels bored to 95.1 mm do not need rings.
Not directly. The Tacoma uses 6x139.7, so 2007-2021 Tundra wheels only mount with a bolt-pattern adapter, which adds a second bolted joint and pushes the wheel outboard. A 6x139.7 wheel is the better choice.
