Do S550 Wheels Fit an S650 Mustang?

Yes, on the hub. S550 and S650 Mustangs share the 5x114.3 bolt pattern, 70.5mm hub bore, and M14x1.5 studs, so every S550 wheel bolts on. Whether it clears depends on the S650's brakes, not the S550's. Most guides stop at "same bolt pattern" without saying what else changed. Two things did. The S650 Performance Pack and Dark Horse moved to a 390mm front Brembo and a four-piston fixed rear caliper, where the S550 Performance Pack ran a single-piston floating rear. And the S650 reads 433 MHz tire pressure sensors, so your S550 sensors won't talk to it.

I'm Dennis Feldman. Moving a set of wheels from an old Mustang to a new one is one of the most common questions we get from S650 owners, and the answer is almost always "yes, with one check." This guide tells you which check, based on which S650 you have and which S550 wheel you're holding.

Your S650	Brakes (Front / Rear)	S550 Wheels That Clear	What to Check
EcoBoost, standard brakes	320mm twin-piston floating / 320mm single-piston	Every S550 factory wheel	TPMS sensors only
GT, standard brakes	352mm four-piston fixed / 350mm single-piston	S550 GT 18s and every S550 19- and 20-inch wheel	Don't assume S550 EcoBoost 17s clear; TPMS sensors
EcoBoost or GT with Performance Pack	390mm Brembo six-piston / 355mm four-piston fixed	19-inch and larger only	Front usually clears on S550 PP wheels; test-fit the rear
Dark Horse (and Handling Package)	390mm two-piece Brembo six-piston / 355mm four-piston fixed	19-inch and larger only	Same rear caliper check as the Performance Pack

Brake figures are from Ford's 2025 Mustang technical specifications. The second table flips the question around: start with the S550 wheel you have and see where it lands.

S550 Wheel	Factory Size	Designed Around	Best S650 Match
EcoBoost / V6 17- and 18-inch	17 and 18 in.	320mm twin-piston floating front brakes	S650 EcoBoost, standard brakes
GT base 18-inch	18 in.	14-inch four-piston fixed front	S650 EcoBoost or GT, standard brakes
EcoBoost High Performance Package	19x9	GT-size four-piston front	Any standard-brake S650; test-fit on Performance Pack
GT Performance Pack 1	19x9 front / 19x9.5 rear	380mm Brembo six-piston front, single-piston floating rear	Any S650; rear test-fit on Performance Pack and Dark Horse
GT Performance Pack 2	19x10.5 front / 19x11 rear	380mm Brembo six-piston front, single-piston floating rear	Any S650; rear test-fit; check tire poke on non-Dark Horse cars
Shelby GT350	19x10.5 front / 19x11 rear	Brembo six-piston front, four-piston fixed rear	Strong Performance Pack and Dark Horse candidate; check offset

Look at the "Designed Around" column. The S550 wheel that was engineered around a fixed rear caliper is the one most likely to clear an S650 Performance Pack's rear brake without a spacer.

Do the S550 and S650 Use the Same Bolt Pattern?

Yes. Both generations use a 5x114.3mm bolt pattern, a 70.5mm hub bore, and M14x1.5 wheel studs torqued to 150 ft-lb. Factory lug nuts from either car work with factory wheels from either car; with aftermarket wheels, use the seat type the wheel maker specifies. For how the 5x114.3 pattern is shared across the market, read what cars use the 5x114.3 bolt pattern.

The hub bore is the underrated part. A factory S550 wheel is bored to the Mustang's exact 70.5mm hub, which makes it hub-centric on an S650: the hub carries the wheel's weight and centers it, and the lug nuts only clamp. Most aftermarket 5x114.3 wheels are bored larger, usually to 72.6mm or 73.1mm, so they can fit several makes. Those wheels need hub-centric rings on a Mustang to get the same centering. Skip the rings and the lug nuts do the centering, which is how vibration at highway speed starts. The difference is explained in hub-centric vs. lug-centric wheels.

So the bolt-on part of the question is settled. Everything else comes down to what sits inside the wheel.

Which S650 Brake Packages Do S550 Wheels Clear?

The brake package on the S650 you're bolting the wheels onto decides it. Here's what Ford lists for 2025:

• EcoBoost, standard: 320mm vented front rotors with twin-piston floating calipers; 320mm solid rear rotors with single-piston calipers.
• GT, standard: 352mm front rotors with four-piston fixed calipers; 350mm vented rear rotors with single-piston calipers.
• Performance Pack (EcoBoost or GT): 390mm front rotors with Brembo six-piston calipers; 355mm rear rotors with four-piston fixed calipers.
• Dark Horse: 390mm two-piece front rotors with Brembo six-piston calipers; 355mm rear rotors with four-piston fixed calipers.

Compare that with the S550. The S550 GT Performance Pack ran 15-inch (380mm) front rotors with Brembo six-piston calipers and single-piston floating calipers on 13.8-inch (350mm) rear rotors. So between generations, the front Brembo grew 10mm in diameter, and the rear went from a single-piston floating caliper to a four-piston fixed caliper.

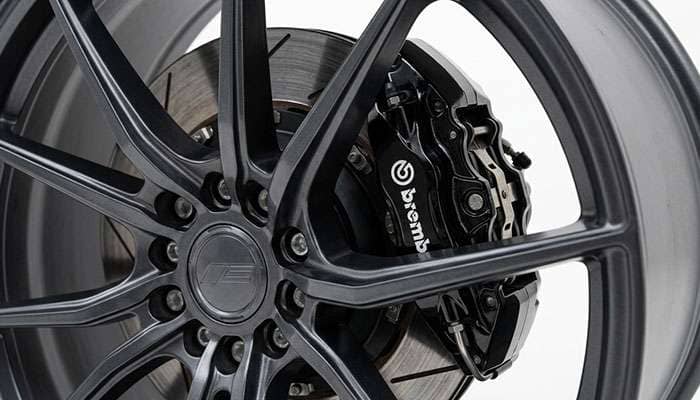

Why the rear caliper is the one to watch

A floating caliper has its piston on the inboard side only, and the caliper body slides on pins. That keeps the outboard side, the part facing the back of your wheel spokes, relatively slim. A fixed caliper has pistons on both sides of the rotor and doesn't slide, so it carries a full body on the outboard face. That's more material between the rotor and the back of the spoke. Add 5mm of rotor diameter, which pushes the caliper 2.5mm farther out toward the wheel barrel, and a wheel that cleared an S550 rear brake with room to spare can end up closer than you'd like on an S650.

Wheel makers generally want at least 3mm between the spoke and caliper for flex under hard cornering. At that margin, a couple of millimeters is the whole budget. Our brake caliper wheel clearance guide covers how spoke profile, offset, and diameter each eat into it.

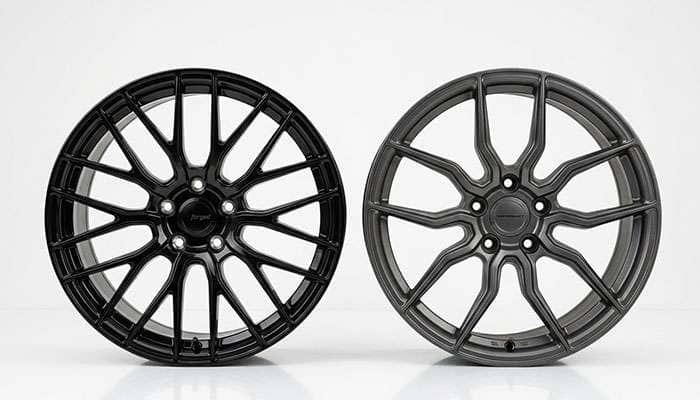

Will S550 Performance Pack Wheels Fit an S650 GT or Dark Horse?

Usually on the front, and maybe on the rear. S650 owners who have tried S550 Performance Pack 1 and 2 wheels on Brembo-equipped S650s generally report that the fronts clear the 390mm six-piston caliper. The rear is where they report uncertainty, because the S550 PP wheels were never designed around a fixed rear caliper. Treat the rears as a test-fit, not a guarantee.

If the rear touches

A thin hub-centric spacer, typically 3mm to 5mm, moves the spoke face out and usually cures it. It also changes your offset by the same amount, pushing the rear tire toward the fender lip. On a 19x9.5 S550 PP1 rear, that's rarely a problem. On a 19x11 PP2 rear with a 305 tire, check the fender. For what spacers do to bearing load and stud engagement, read do wheel spacers hurt your car. If you need more than a thin spacer, the wheel isn't the right match for that car.

The Shelby GT350 wheel shortcut

The Shelby GT350 was the S550 that already ran a four-piston fixed rear caliper under a 19x11 rear wheel. That makes it a natural donor for an S650 Performance Pack or Dark Horse. Two cautions apply. The GT350's widths, 19x10.5 front and 19x11 rear, are the same as the Dark Horse Handling Package, but wider than a standard S650 GT's 19x9 front and 19x9.5 rear. And the GT350 wore wider front fenders than a regular S550, so check front offset and tire poke on a non-Dark Horse car.

Will S550 18-Inch Wheels Fit an S650?

On a standard-brake S650, yes. The S550 GT's 18-inch wheels were built around a 14-inch four-piston fixed front caliper, very close to the S650 GT's standard 352mm four-piston setup, and the S650 GT itself ships on 18x8.5 wheels. S550 EcoBoost 18s are an easy fit on an S650 EcoBoost with standard brakes.

On a Performance Pack or Dark Horse S650, no. Plan on 19-inch as the minimum. A 390mm rotor leaves too little room inside an 18-inch barrel for the Brembo six-piston caliper on almost any wheel, and fitment guides for the S650 list 19 inches as the floor for Performance Pack and Dark Horse cars. If your S650 has Brembo calipers and you're holding a set of S550 18s, they're winter wheels for someone else's Mustang.

The 17-inch question only matters on the S650 EcoBoost with standard brakes. S550 EcoBoost and V6 17s were built around smaller brakes. They may clear an S650 EcoBoost's 320mm fronts, but test-fit before you mount tires, and don't try them on a GT.

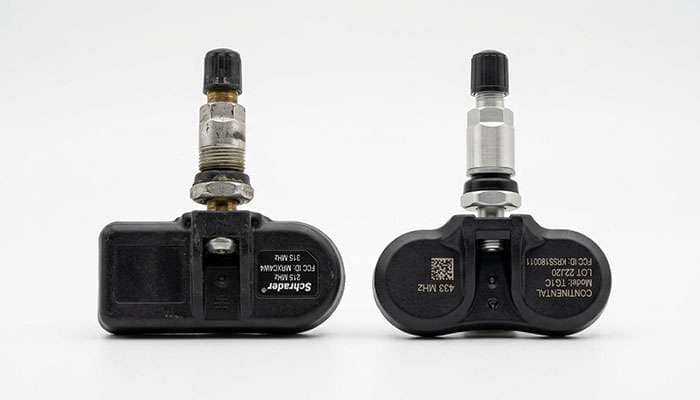

Do S550 TPMS Sensors Work on an S650?

No. Almost every S550-to-S650 wheel swap trips over this. Ford's own tire pressure monitoring sensor kit for 2024-2026 Mustangs is a 433 MHz part. S650 owners who have tried U.S.-market S550 sensors report the car doesn't recognize them at all, and the TPMS warning stays on. The sensor physically fits the wheel; it just transmits on a frequency the S650 isn't listening to.

That matters for more than a dash light. Federal Motor Vehicle Safety Standard No. 138 requires a working tire pressure monitoring system on every new passenger car, and the S650's warning system expects to hear from four sensors on its frequency. You have two options:

• Move your S650's factory sensors into the S550 wheels when the tires are mounted. This is the cheapest route if you're not keeping the factory wheels as a second set.
• Buy a second set of 433 MHz sensors if you plan to swap between factory wheels and S550 wheels seasonally or for track days.

Either way, the old S550 sensors come out of those wheels. For how aftermarket wheels handle sensors in general, read TPMS sensors for aftermarket wheels.

Can You Run an S550 Staggered Setup on an S650?

Yes, and the sizes line up closely. Ford's 2025 order guide lists the S650 GT Performance Package on 19x9 front and 19x9.5 rear wheels with 255/40R19 front and 275/40R19 rear tires. The S550 GT Performance Pack 1 used the same 19x9 and 19x9.5 widths and the same tire sizes. The S650 Dark Horse runs 19x9.5 front and 19x10 rear on those same tire sizes, and the Handling Package runs 19x10.5 front and 19x11 rear, the same widths as the S550 PP2 and GT350.

Keep the front and rear diameters matched

The S650's ABS and stability control compare wheel speeds front to rear. A mismatched setup reads to the system like wheelspin. Fitment specialists generally keep the front and rear tire heights within about 3 percent of each other to keep the stability systems quiet. A 255/40R19 front is about 27.0 inches tall and a 275/40R19 rear is about 27.7 inches, a 2.3 percent difference that Ford itself uses. Mixing an S550 PP2 305/30R19 front, about 26.2 inches, with a taller rear from another setup is how people end up past that line. For the tradeoffs, read square vs. staggered setups.

Don't forget rotation

A staggered setup can't rotate front to rear. That's true on either generation, and it means rear tires wear out faster. If you're moving S550 staggered wheels to an S650 you drive daily, budget for rear tires on a shorter cycle.

Do S650 Wheels Fit an S550 Mustang?

Going the other direction is easier, with one exception. The hub, bolt pattern, and studs are identical, so every S650 wheel bolts on. And the clearance math runs in your favor: an S650 Performance Pack or Dark Horse wheel was designed around a 390mm front rotor and a four-piston fixed rear caliper, both larger than anything on a standard S550 GT or an S550 Performance Pack. A wheel built to clear the bigger brake clears the smaller one.

The exception is the smallest S650 wheels. S650 EcoBoost wheels designed around the 320mm twin-piston front brake shouldn't be assumed to clear an S550 GT's 14-inch four-piston caliper. Test-fit them the same way.

The TPMS problem also runs in reverse. S650 sensors transmit at 433 MHz, and a U.S.-market S550 won't recognize them. If you buy a used set of S650 take-offs for your S550, budget for S550 sensors too.

What the Wrong Wheel Costs You While You Drive on It

A wheel that almost clears doesn't fail in the driveway. It fails in steps, and each one costs more than the last.

1. A TPMS light you learn to ignore. S550 sensors in the S650 leave the warning on permanently, which means a real slow leak looks exactly like the light you already stopped reading.
2. A tick under load. A spoke that clears in the driveway can touch a fixed rear caliper under hard cornering, when the wheel flexes. You hear a tick, then a scrape.
3. Gouged spokes and caliper. Contact cuts into the back of the spoke and the caliper body. On a Brembo, that's painted and machined aluminum you can't touch up back to new.
4. Hub-centric shortcuts. Aftermarket wheels without rings center on the lug nuts. Vibration, loose nuts, and stud wear follow.
5. Stability system confusion. Mismatched staggered diameters trigger ABS and traction interventions when nothing is slipping, often at the moment you need predictable braking.
6. The expensive ending. A cracked spoke, a damaged caliper, or a lost wheel costs far more than a test-fit or a set of the right sensors.

Every step on that list is avoidable with the right wheel for your S650's brake package, hub-centric fitment, and sensors on the right frequency. Start with the 2025 Ford Mustang wheel and tire fitment page to see sizes matched to your trim.

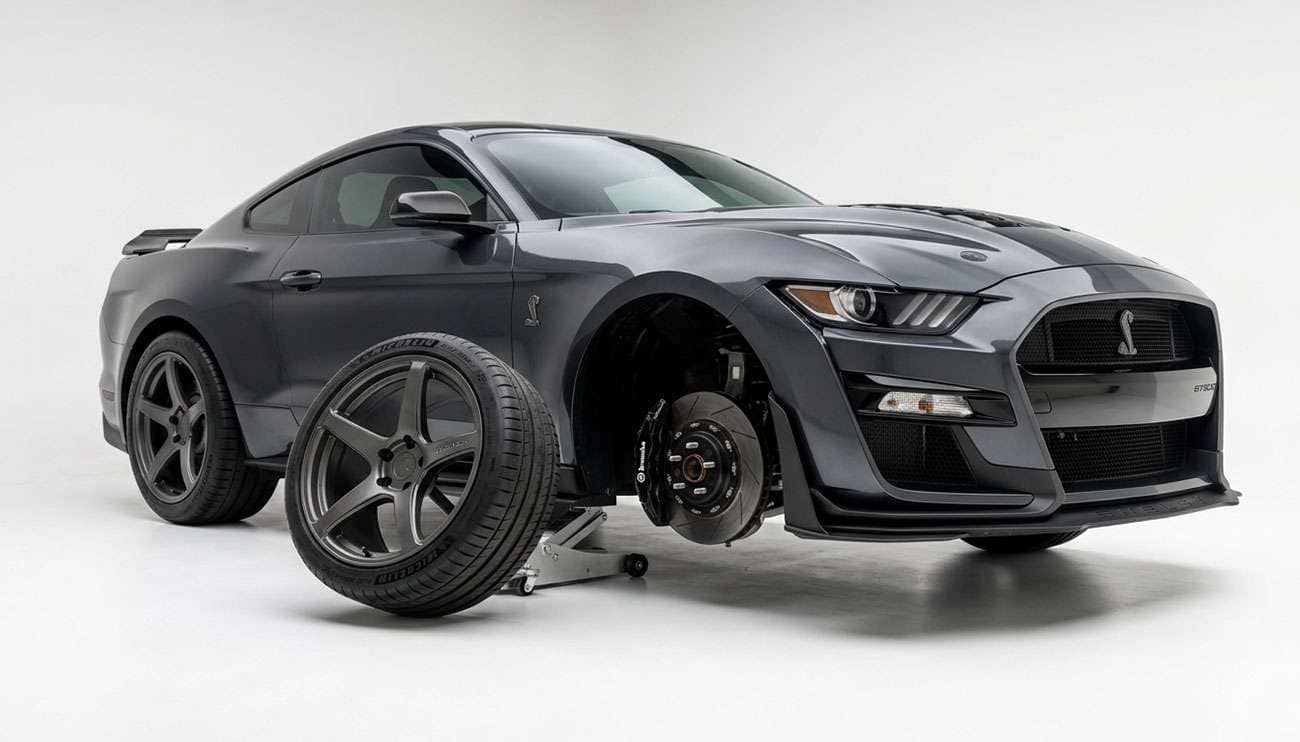

How to Test-Fit S550 Wheels on an S650, Step by Step

1. Identify your S650's brake package. Brembo lettering on a six-piston front caliper means Performance Pack or Dark Horse. Check the rear too: a caliper with pistons on both sides of the rotor is the four-piston fixed rear.
2. Identify the S550 wheel. Note the diameter, width, and which S550 it came off. A PP1, PP2, or GT350 wheel tells you which brake it was built around.
3. Test-fit before mounting tires. Mount the bare wheel on each corner, snug the lug nuts, and spin it by hand. Listen and look for contact at the caliper.
4. Measure the gap. Check spoke-to-caliper clearance at the tightest point on each corner. You want at least 3mm; less than that under load is contact.
5. Correct with a thin spacer only if needed. Use a hub-centric spacer of 3mm to 5mm, with extended studs if the manufacturer calls for them.
6. Swap the TPMS sensors. Install 433 MHz S650 sensors when the tires are mounted.
7. Check tire sizes front to rear. Keep the heights within about 3 percent.
8. Torque and re-torque. Torque to 150 ft-lb in a star pattern and re-check after the first 50 to 100 miles.

If you're shopping S550 wheels secondhand, our list of the most popular S550 Mustang wheels is a good place to identify what you're looking at.

Conclusion

S550 wheels bolt onto an S650 Mustang: same 5x114.3 pattern, same 70.5mm hub, same M14x1.5 studs, same 150 ft-lb torque. The variable is the S650's brakes. A standard-brake EcoBoost or GT takes almost any S550 wheel. A Performance Pack or Dark Horse needs 19-inch wheels at minimum, and its four-piston fixed rear caliper is the one to test-fit, because S550 Performance Pack wheels were built around a single-piston floating rear. The GT350's wheels were built around a fixed rear, which makes them the natural donor. And whatever wheel you pick, the S550 TPMS sensors come out and 433 MHz sensors go in.

Key Takeaways

• Same hub, same pattern: 5x114.3, 70.5mm hub bore, M14x1.5 studs, 150 ft-lb on both generations.
• The S650's brakes decide it, not the S550's. Standard-brake cars take almost any S550 wheel.
• Performance Pack and Dark Horse need 19-inch minimum. Front 390mm Brembos, rear 355mm four-piston fixed calipers.
• Test-fit the rear. S550 PP wheels were designed around a single-piston floating rear caliper.
• GT350 wheels were designed around a fixed rear caliper and are a strong candidate for Brembo S650s.
• S550 TPMS sensors don't work on the S650, which uses 433 MHz sensors.
• Keep staggered front and rear tire heights within about 3 percent.

FAQs
