18 vs. 20-Inch Wheel and Tire Packages for Muscle Cars: Will 18s Fit?

Most 18-vs-20 talk is about ride and looks. On a modern Mustang, Challenger, Charger, or Camaro, there's a question that comes first: will an 18 even fit over your front brakes? Your bolt pattern won't tell you. Your brake package will. Here's the rule I give everybody who calls the shop: the smallest wheel the factory ever put over your exact brakes is your safe floor. A Mustang GT came on 18s. A GT Performance Pack never ran less than 19. A Hellcat never got anything under 20.

I'm Hank Feldman. I've been bolting wheels on muscle cars since we opened the doors in Long Beach in 1971, and the cars got a lot heavier on brakes along the way. Below is the brake-by-brake table, the reasons behind it, three 18 and 20-inch packages that clear, and what it costs when somebody guesses wrong.

Smallest factory wheel by brake package

Car and Trim	Front Brake	Smallest Factory Wheel	Street 18-Inch Package?
2010-2014 Mustang GT, standard brakes	Standard GT brakes	18-inch	Yes
2011-2014 Mustang GT, Brembo package	Brembo 4-piston, 14-inch rotor	19-inch	No
2015-2023 Mustang GT (S550)	4-piston fixed, 352 mm (13.9 in)	18x8	Yes
2015-2023 Mustang EcoBoost Performance Pack	4-piston fixed, 352 mm (13.9 in)	19x9 (same brake spec the GT ran on 18x8)	Likely; confirm with a template
2015-2023 Mustang GT Performance Pack	Brembo 6-piston, 380 mm (15.0 in)	19x9	No
2024+ Mustang GT (S650)	4-piston fixed, 352 mm (13.9 in)	18x8.5	Yes
2024+ Mustang GT Performance Pack and Dark Horse	Brembo 6-piston, 390 mm (15.4 in)	19x9	No
2015-2023 Challenger and Charger SXT	Single-piston, 320 mm (12.6 in)	18x7.5 (Challenger), 17x7 (Charger)	Yes
2015-2023 Challenger and Charger GT, R/T	Dual-piston, 345 mm (13.6 in)	19x7.5 (AWD GT); 20x8 (RWD)	Not proven; template required
2015-2023 Challenger and Charger Scat Pack	Brembo 4-piston, 360 mm (14.2 in)	20x9 (but 18x11 over the same brake on the 2021 Challenger SRT Super Stock)	Possible with a wheel built for it
2015-2023 Challenger and Charger SRT 392, Hellcat	Brembo 6-piston, 390 mm (15.4 in); 400 mm on 2021+ Hellcats	20x9.5	No
2016-2024 Camaro 1LT and 2LT	Base brakes	18-inch	Yes
2016-2024 Camaro SS	Brembo 4-piston, 345 mm (13.6 in)	20x8.5	Not proven; template required
2017-2024 Camaro ZL1	Brembo 6-piston, 390 mm (15.35 in)	20x10 (19-inch on the ZL1 1LE)	No

Can You Put 18-Inch Wheels on a Car That Came With 20s?

Sometimes. It depends on the hardware hiding behind the spokes, not the badge on the trunk. That's why I don't let the trim name answer the question. Two quick examples from the table show why.

First, the 2015-2023 Mustang EcoBoost Performance Pack. It left the factory on 19s, so you'd figure it needs 19s. But Ford's own spec sheet lists its front brakes as a 352 mm four-piston fixed caliper setup, the same spec Ford bolted under 18x8 wheels on the plain GT. The badge says 19. The hardware says 18 is likely fine. That's a car where a brake template earns its keep.

Second, the Scat Pack. Every Challenger and Charger Scat Pack came on 20s, so most folks assume 20 is the floor. Then Dodge built the 2021 Challenger SRT Super Stock with the same 360 mm Brembo four-piston package as standard and shipped it on 18x11 wheels. The Demon ran 18x11s over a 360 mm four-piston setup, too. So an 18 can clear a Scat Pack's Brembos. Just not every 18.

Run it the other way and the rule holds. A Hellcat or SRT 392 never came on anything smaller than a 20x9.5, and a 2015-2023 Mustang GT Performance Pack never came on anything smaller than a 19x9. When the factory never proved a size over your brakes, a regular street 18 is a gamble you don't need to take.

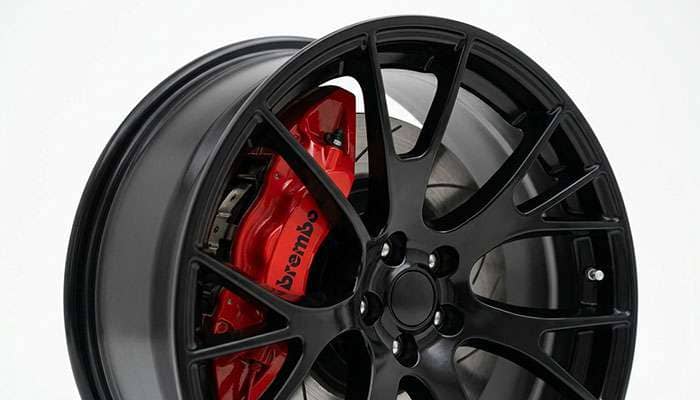

Why Do Big Brakes Need Bigger Wheels?

Picture the front corner of your car with the wheel off. The rotor is a big iron disc, and the caliper wraps over its outer edge like a hand gripping a plate. So the caliper body sticks out past the rotor, both outward toward the wheel barrel and sideways toward the back of the spokes.

Now look at the wheel. The "18" on an 18-inch wheel is measured at the bead seats, where the tire sits. The inside of the barrel, where the caliper actually has to fit, is smaller than that number once you account for the bead seat, the drop center, and the barrel wall. A 15.4-inch rotor with a six-piston caliper clamped over it simply runs out of room inside most 18-inch barrels. That's radial clearance.

The second check is spoke clearance. Even when the barrel is big enough, the back of the spokes can still hit the caliper face, especially on flat-faced or concave designs. Two wheels with identical diameter and offset can clear differently because of how the spokes are shaped behind the face. Our guide to brake caliper wheel clearance covers both planes and how to measure them at home.

That's why the factory wheel size matters so much. The automaker designed, tested, and signed off on that wheel over that brake. A replica built to the same dimensions, or a wheel the maker specifically lists for your brake package, inherits that clearance. Anything else needs a test-fit or a printed brake template, which our big brake kit wheel clearance guide walks through step by step.

Will 18s Fit a Mustang GT or Performance Pack?

On a regular GT, yes. On a Performance Pack, not for street use. Here's how it breaks down by generation.

2010-2014 (S197). The standard GT rolled out on 18s, and that's the car the classic deep-dish 18x9 packages are built for. Ford's optional Brembo package for the 2011-2014 GT added 14-inch rotors with four-piston calipers, and Ford put those cars on 19-inch wheels in part to give the big calipers room. If your S197 has the Brembos, shop 19s and up.

2015-2023 (S550). The GT's 352 mm four-piston brakes came under an 18x8, so 18s are native. The GT Performance Pack is a different animal: a Brembo six-piston caliper on a 380 mm (15.0-inch) rotor. Ford never sold it on anything under 19x9, and Ford Performance's own six-piston brake kit for these cars calls for its 19x9 wheel "or equivalent" for caliper clearance. That's the factory telling you where the floor is. If you're shopping 19s and 20s for an S550, our rundown of the most popular S550 Mustang wheels is a good place to start.

2024 and newer (S650). Same pattern. The GT runs 352 mm four-piston brakes on 18x8.5 wheels with 255/45R18 tires. The GT Performance Pack and Dark Horse step up to Brembo six-piston calipers on 390 mm (15.4-inch) rotors and start at 19 inches.

One footnote for the drag crowd: there are purpose-built 18x5 front runners sold for Performance Pack Brembos. Even some of those call for a quarter-inch spacer on 2015 Performance Pack cars to clear. That tells you how tight it gets. A wide street 18 is a whole different shape and won't follow those wheels over the caliper.

Will 18s Fit a Challenger or Charger Scat Pack or Hellcat?

Dodge built more brake packages into these cars than most people realize, so read your spec sheet or window sticker before you shop.

SXT. A 320 mm (12.6-inch) single-piston setup. The Challenger SXT came on 18x7.5 wheels with 235/55R18 tires, and the Charger SXT started at 17 inches. An 18 is no problem.

GT and R/T. A 345 mm (13.6-inch) dual-piston setup. The smallest factory wheel was a 19x7.5 on the AWD GT, with RWD cars on 20s. Dodge never put an 18 over these brakes, so an 18 is a template job, not a guess.

Scat Pack. Brembo four-piston calipers on 360 mm (14.2-inch) rotors, factory on 20x9 wheels with 245/45ZR20 tires. As covered above, Dodge proved this brake can live under an 18 when it shipped the Super Stock on 18x11s. That doesn't mean any 18 clears. It means an 18 designed with that barrel and spoke clearance can.

SRT 392 and Hellcat. Brembo six-piston calipers on 390 mm (15.4-inch) two-piece rotors, growing to 400 mm (15.7-inch) on 2021-and-newer Hellcats. Every factory wheel was 20 inches or larger, with 275/40ZR20 106Y XL tires on the narrowbody cars. Some purpose-built 18x5 drag fronts are marketed for Hellcats, but a street 18 isn't in the conversation. For style ideas that stay at 20, see our list of the best-selling Dodge Challenger wheels.

Will 18s Fit a Camaro SS or ZL1?

The 2016-2024 Camaro splits cleanly. The 1LT and 2LT came on 18-inch wheels with 245/50R18 tires, so an 18 is native on those cars. The SS steps up to Brembo four-piston calipers on 345 mm (13.6-inch) rotors and came on 20x8.5 fronts. Chevy never sold an SS on 18s, so treat an 18 as unproven until a template says otherwise.

The ZL1 runs Brembo six-piston monoblock calipers on 390 mm (15.35-inch) rotors and came on 20x10 fronts. The track-focused ZL1 1LE runs 19s over the same size rotor, which tells you 19 is the practical floor. A street 18 doesn't belong on a ZL1.

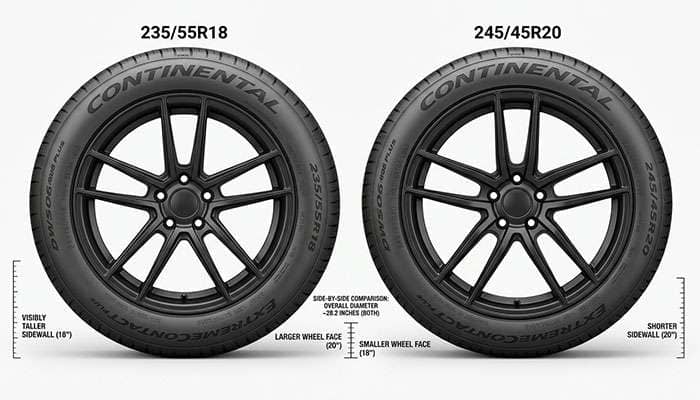

What Changes When You Go From 20s to 18s?

If your brakes allow it, dropping to 18s buys you sidewall, cheaper tires, and a little more forgiveness on bad pavement. Here's what that looks like on a Challenger, using the factory 18 and 20-inch sizes.

Factor	18-Inch (235/55R18)	20-Inch (245/45R20)
Sidewall height	5.09 in	4.34 in
Overall diameter	28.18 in	28.68 in
Continental ExtremeContact DWS06 Plus price	$225.99	$271.99
Brakes it clears	SXT for certain; others need proof	Every 2015-2023 narrowbody brake package
Look	More tire, old-school stance	Fills the wheel well

Watch the diameter row. The factory 18 stands half an inch shorter than the factory 20, about 1.7 percent. At an indicated 70 mph you'd really be doing about 68.8. Not dangerous, but if you want the speedometer dead on, size the 18-inch tire to the 20-inch diameter instead of copying the SXT's size. The same thinking applies to winter sets, which our guide to downsizing a winter wheel and tire package covers in detail.

And the money: in the same Continental tire line, the 18 runs $46 less per tire than the 20. Over a set, that's $184 every time you replace them.

What Bolt Pattern and Hub Bore Does Your Muscle Car Use?

Once your brakes say yes, the hub has to agree. All three of these platforms use M14x1.5 lug studs, but the bolt circles and center bores differ. Find your car, then jump to the matching package.

Platform	Bolt Pattern	Hub Bore	Lug Thread	Package Below
2010-2014 Ford Mustang	5x114.3	70.5 mm	M14x1.5	Packages 1 and 2
2015+ Ford Mustang	5x114.3	70.5 mm	M14x1.5	Build guide in the 18-inch section
2015-2023 Dodge Challenger and Charger	5x115	71.5 mm	M14x1.5	Package 3
2016-2024 Chevy Camaro	5x120	66.9 to 67.1 mm	M14x1.5	Build guide in the 18-inch section

Watch the Mopar pattern. 5x115 and 5x114.3 are only 0.7 mm apart, close enough that a Mustang wheel can look like it fits a Challenger. It doesn't. The studs bind, the wheel never seats flat, and the lug nuts back off. Shop by your exact pattern: 5x115, 5x114.3, or 5x120.

Popular 18-Inch Wheel and Tire Packages

Every package in this article passed three checks: the wheel size is proven over the brakes it's listed for, the tire's approved rim width covers the wheel, and the load rating carries the car. Prices are per item at publication, and product pages may show lower set-of-four pricing.

Package	Wheel	Tire	Wheel Rating	4 Wheels + 4 Tires
1. 2010-2014 Mustang, 18-inch	American Racing AR105M Torq Thrust M 18x9 +34	Nitto NT555 G2 255/45ZR18 103W XL	1,840 lb	$2,200.00
2. 2010-2014 Mustang, 20-inch	American Racing AR941 Mach Five 20x10 +35	Nitto NT555 G2 275/35ZR20 102W XL	1,280 lb	$3,297.32
3. 2015-2023 Challenger and Charger, 20-inch	Factory Reproductions FR 70 Hellcat 20x9.5 +15	Falken Azenis FK510 275/40ZR20 106Y XL	2,200 lb	$2,196.00

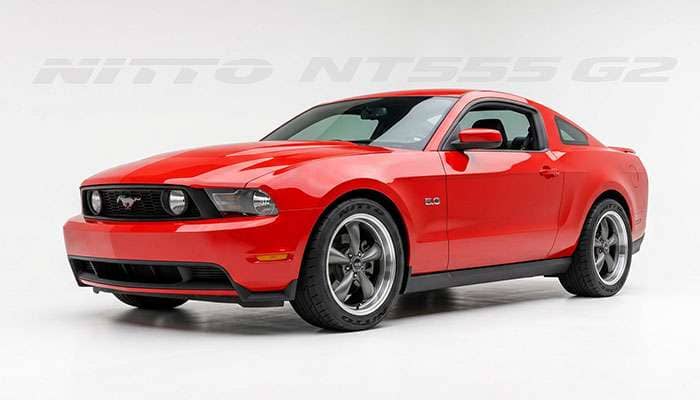

Package 1: 2010-2014 Mustang GT and V6, American Racing Torq Thrust M + Nitto NT555 G2

Fits: 2010-2014 Mustang GT and V6 with standard brakes, not the Brembo package.

If you want the look that made American Racing famous on a car with modern bones, this is it. The American Racing AR105M Torq Thrust M is an 18x9 at +34 mm, rated 1,840 lb, and American Racing builds this size for standard GT and V6 cars. Its 72.56 mm center bore needs hub-centric rings to center on the Mustang's 70.5 mm hub, so order a set with the wheels. Wrap it in the Nitto NT555 G2 255/45ZR18 103W XL, a 27.0-inch-tall summer tire that's approved for 8- to 9.5-inch rims, so it sits square on the 9-inch wheel. It's also the same size Ford puts on the 2024 Mustang GT. Run it on all four corners and you can rotate it. Wheels list at $312.00 each and tires at $238.00 each, $2,200.00 for four of each. For other tire options on this width, see what size tires fit 18x9 wheels.

Building an 18-inch package for other cars

For a 2015-and-newer Mustang GT without the Performance Pack, a Challenger or Charger SXT, or a Camaro 1LT or 2LT, the factory already proved an 18 clears your brakes. Start with the factory width and offset, then shop 18-inch wheels in your exact bolt pattern. On the S650 GT, the factory 255/45R18 is a great place to start, and you'll find it on our 255/45R18 tires page. For a Scat Pack, call us before you buy anything. That's a wheel-by-wheel decision.

Popular 20-Inch Wheel and Tire Packages

Twenty-inch packages are the safe side of the brake question on nearly every modern muscle car, because the factory put most of these brake packages under 20s in the first place. Here are two that check every box.

Package 2: 2010-2014 Mustang, American Racing Mach Five + Nitto NT555 G2

Fits: 2010-2014 Mustang, front or rear.

The American Racing AR941 Mach Five is a 20x10 at +35 mm in graphite, designed for the 2010-2014 Mustang front or rear, and machined to the Mustang's 70.5 mm hub so it centers without rings. Pair it with the Nitto NT555 G2 275/35ZR20 102W XL, approved for 9- to 11-inch rims and 27.6 inches tall. Because it's the same size at all four corners, it rotates. Two notes from the shop floor. The wheel is rated 1,280 lb, so check it against half your heaviest axle rating on the door-jamb label. And on a Brembo-package car, test-fit one wheel before mounting tires, since the 20-inch barrel gives you room but the spoke shape still has to clear. Wheels list at $521.33 each; tires at $303.00 each.

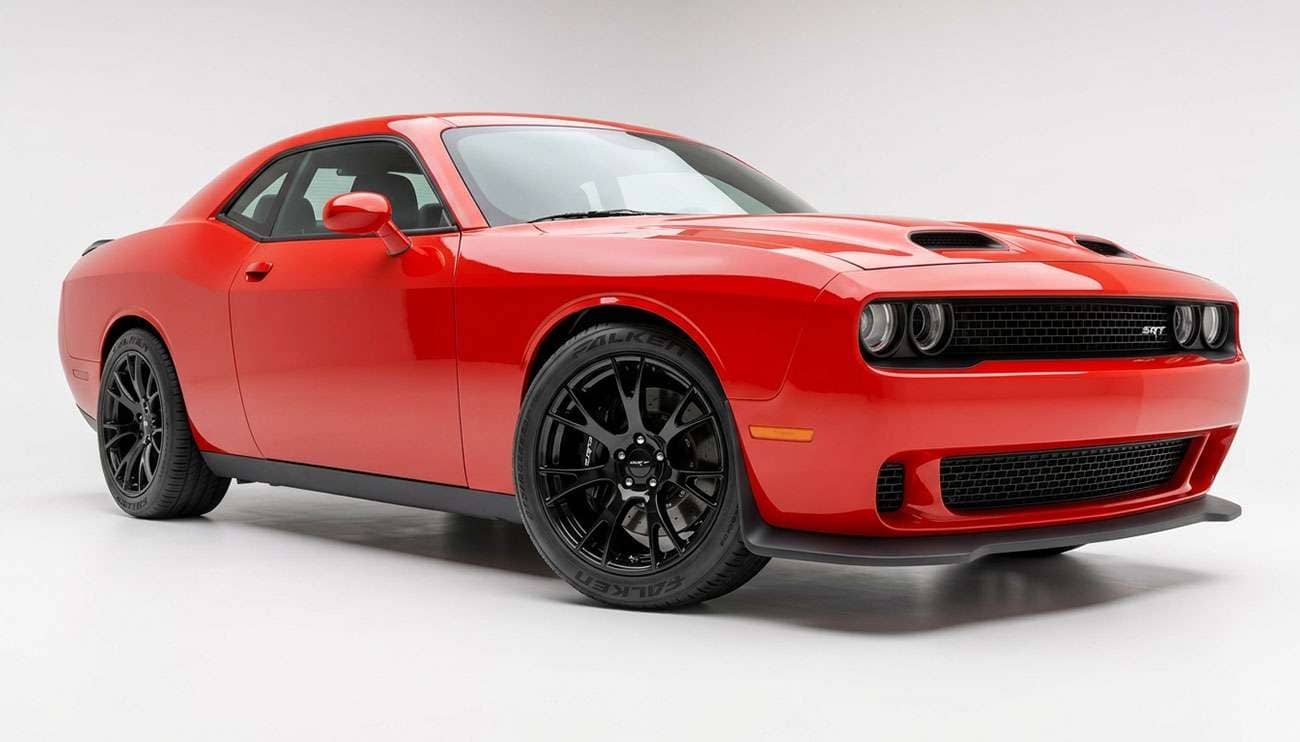

Package 3: 2015-2023 Challenger and Charger, Factory Reproductions FR 70 Hellcat + Falken Azenis FK510

Fits: 2015-2023 Challenger and Charger narrowbody, including Scat Pack, SRT 392, and Hellcat.

This is the one I'd put on most modern Mopars. The Factory Reproductions FR 70 Hellcat replicates the Hellcat's 20x9.5 wheel, here at +15 mm in gloss black, on the 71.5 mm Mopar hub, rated 2,200 lb. The Falken Azenis FK510 275/40ZR20 106Y XL matches the size, load index, and Y speed rating the SRT cars wore from the factory, and at 28.66 inches tall it matches the Scat Pack's factory 245/45ZR20 to within two hundredths of an inch. Scat Packs and SRTs left the factory on Y-rated tires, so don't step down to a W-rated tire on these cars. If the car is your daily driver, swap in the Continental ExtremeContact DWS06 Plus 275/40ZR20 106Y XL at $285.99 for all-season grip. On a 2021-or-newer Hellcat with the 400 mm rotor, test-fit one wheel before mounting tires. Wheels list at $260.00 each; tires at $289.00 each.

Notice something? This 20-inch Mopar package comes in a few dollars under the 18-inch Mustang package. Bigger isn't automatically pricier. And because all three packages run the same size at all four corners, you can rotate the tires, which a staggered setup won't let you do. Our breakdown of square vs. staggered setups explains what that does to tire life. Browse more 20-inch wheels, the full Factory Reproductions and American Racing lineups, or every 275/40R20 tire we carry.

What Happens If a Wheel Hits the Caliper?

Nobody plans to buy a wheel that hits the caliper. It happens because somebody trusted the bolt pattern and skipped the test-fit. Here's how it usually plays out:

1. A tick or scrape at parking-lot speed. The wheel barely kisses the caliper, usually under load or at full lock.
2. Knocked-off balance weights. Inside weights get scraped off the barrel, and a vibration shows up at highway speed.
3. A gouged wheel. The back of the spokes or the barrel gets machined by the caliper. Most wheel makers won't warranty that, and the wheel is done.
4. A machined caliper. Now the expensive part is the one getting cut. On a Brembo six-piston car, that's a big bill for one corner.
5. A damaged bleeder or brake line, the point where a clearance problem turns into a brake problem.

Spacers aren't the cure most people think. A spacer moves the wheel outward, which can help spoke clearance, but it does nothing for radial clearance inside the barrel, and it changes your scrub radius and pushes the tire toward the fender. The fix that costs less than any rung on that ladder is a package proven over your brakes, test-fit before the tires go on.

How to Order an 18 or 20-Inch Package That Clears

1. Identify your brake package, not just your trim. Your window sticker or build sheet tells you which brakes you have. Look for Brembo, Performance Pack, Scat Pack, or SRT.
2. Find the smallest factory wheel over those brakes. Use the table at the top. That's your safe floor.
3. Going smaller than that floor? Only buy a wheel the maker lists for your brake package, and test-fit before mounting tires.
4. Confirm bolt pattern, hub bore, and lug thread. 5x114.3 and 70.5 mm for Mustang, 5x115 and 71.5 mm for Challenger and Charger, 5x120 for Camaro. Order hub-centric rings if the wheel's bore is larger.
5. Match the tire to the wheel width and the factory diameter. Keep the overall height close to stock so your speedometer and traction control stay honest, and match or beat the factory load index and speed rating.
6. Check the wheel's load rating. It should cover half of your heaviest axle rating on the door-jamb label.
7. Test-fit one wheel at full lock, both directions, before any tire gets mounted.

When you're ready, build your set on our wheel and tire packages page, or give the shop a call and we'll match the wheel to your brakes before anything ships.

Conclusion

Here's what fifty-some years of mounting muscle car wheels has taught me: bolt pattern gets the wheel on the car, but the brakes decide whether it turns. Modern Mustangs, Challengers, Chargers, and Camaros came with everything from a single-piston caliper to a 400 mm Brembo, and the trim badge doesn't always tell you which.

So go by the hardware. If the factory put an 18 over your brakes, an 18 is fair game and saves you money on every set of tires. If the factory never went below 19 or 20, stay there unless the wheel maker lists your exact brake package. And whatever you buy, test-fit one wheel before the tires go on. Five minutes in the driveway beats a gouged Brembo every time.

Key Takeaways

• Brakes set the floor: The smallest wheel the factory put over your exact brake package is your safe minimum.
• Badges can mislead: The 2015-2023 Mustang EcoBoost Performance Pack came on 19s, but its 352 mm four-piston spec matches the GT that came on 18s.
• Scat Packs can run some 18s: Dodge shipped the same 360 mm Brembo four-piston package on 18x11 wheels on the 2021 Challenger SRT Super Stock.
• Six-piston cars stay big: Hellcat and SRT 392 never came under 20 inches, and the Mustang GT Performance Pack never under 19.
• Match the speed rating: Scat Pack and SRT cars came on Y-rated tires, so a replacement 20-inch package should carry a Y rating too.
