Honda Passport Aftermarket Wheels can improve both your vehicle's appearance and performance, but proper fitment requires understanding key specifications. Your Honda Passport bolt pattern and lug pattern determine which wheels will mount correctly, whether you own a 2019 Honda Passport, 2021 model, or the latest 2026 Honda Passport Trailsport.
We've created this guide to help you navigate wheel selection with confidence. You'll learn essential specifications, discover the right size and style for your specific model year, and avoid common fitment problems that cause headaches later. At Performance Plus Tire, we carry the best selection of Honda Passport aftermarket wheels at competitive prices, with the expertise to ensure perfect fitment every time.
Getting wheel specifications right is crucial when selecting Honda Passport aftermarket wheels. Wrong measurements lead to fitment problems ranging from vibrations to wheels that won't mount at all.
The bolt pattern, also called PCD (Pitch Circle Diameter), measures the circle diameter that passes through all wheel stud centers. Current Honda Passports from 2019 through 2026 use a 5x120 bolt pattern. Earlier generations used different specs entirely. Models from 1994 through 2002 came with a 6x139.7 bolt pattern. This change means wheels from first and second generation Passports won't fit modern models without major modifications.
Current models use M14 x 1.5 thread size with recommended wheel torque of 127 Nm (94 lbf⋅ft). Always confirm these specifications match your chosen aftermarket wheels before buying.
Factory wheel sizes change based on trim level and model year. 2022-2025 models offer two main setups: 18x8 wheels with ET55 offset running 245/60R18 tires, or 20x8.5 wheels with ET55 offset paired with 265/45R20 tires. The 2025-2026 fourth generation maintains this approach with 18x8 (ET50) and 20x8.5 (ET55) configurations.
Earlier Passport generations ran smaller wheels. First and second generation models (1994-2002) used 15" and 16" rims. This size evolution shows how SUV design and performance standards have advanced over thirty years.

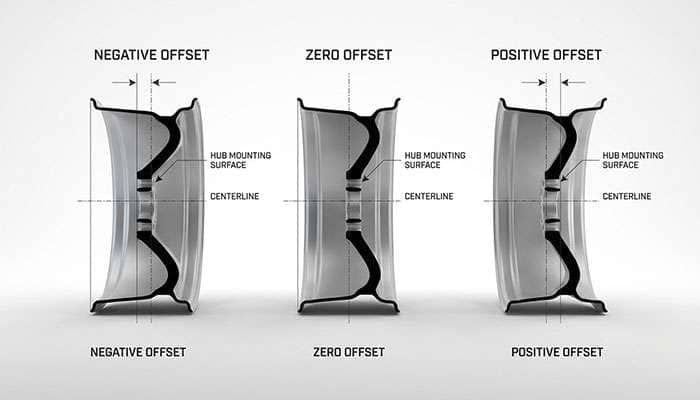

Offset measures the distance in millimeters from the wheel centerline to the mounting surface. The mounting face creates positive, negative, or zero offset depending on its position relative to the centerline. Honda Passports typically use positive offset, usually +50mm to +55mm.
Backspacing measures from the mounting surface to the wheel's inner edge. Offset uses millimeters while backspacing uses inches. Honda Passports with ET55 offset have backspacing around 6.65-6.93 inches. Offset stays constant regardless of wheel width, making it better for fitment comparisons.
The center bore measures 64.1mm on 2019-2026 Honda Passports and must match or exceed your vehicle's hub diameter. Wheels with larger center bores need hub-centric rings to prevent vibration. This specification ensures proper wheel centering on the hub assembly.
When selecting Honda Passport aftermarket wheels, several factors determine whether you'll get the performance and appearance you want. Material choice, weight, and sizing all impact how your Passport drives and looks.
Your Honda Passport comes with either 18-inch or 20-inch wheels from the factory, with widths ranging from 7.5 inches to 8.5 inches. Aftermarket options extend from 17 inches to 22 inches. Changing diameter affects both tire selection and speedometer accuracy. Switching from 20-inch to 18-inch wheels with 30-inch tall tires creates a 1 mph speedometer discrepancy at 30 mph, increasing to 3 mph at 70 mph.
Consider your driving needs when choosing diameter. Smaller wheels with taller sidewalls provide better ride comfort and protection from road hazards. Larger wheels offer improved handling and a more aggressive appearance.
Wheel width determines your tire options and affects your vehicle's stance. Stock widths work with 245/60R18 or 265/45R20 tires. Wider wheels push tires outward, which can cause rubbing on suspension components during turns. Keep overall tire diameter within 0.5-1 inch of stock to prevent clearance problems.
Alloy wheels, made from aluminum and nickel blends, weigh less and dissipate heat better than steel alternatives. They improve acceleration, braking, and handling due to reduced unsprung weight. Steel wheels cost less and resist impact damage better. They're easier to repair but rust more easily. Alloy wheels offer intricate designs, while steel wheels provide basic functionality.
For Honda Passport owners, alloy wheels typically deliver the best balance of performance and appearance.
Wheel weight significantly impacts performance. Passenger car wheels typically weigh 15 to 30 pounds, while performance wheels range from 10 to 15 pounds. Steel wheels exceed 25 pounds. One pound of rotating wheel weight affects performance similar to 5-10 pounds of static vehicle weight. Flow-formed wheels balance strength and weight through rotary forging, while forged aluminum delivers maximum strength at minimum weight.

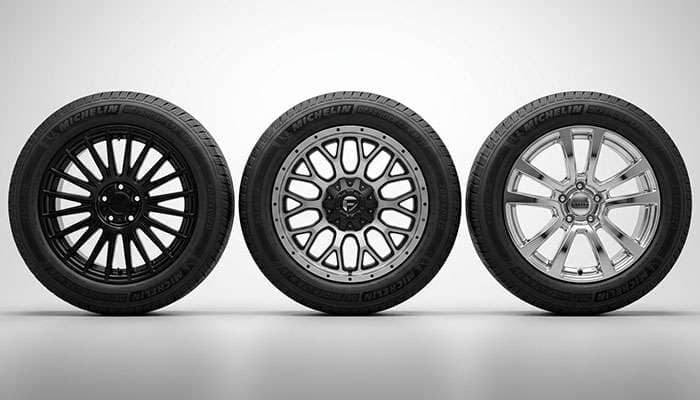

Finish options include lightweight flow-formed alloys, rugged designs for off-road use, and sleek black finishes. Brands like Enkei, Konig, Black Rhino, RTX, ASA, and MSW provide diverse styling choices. Choose finishes that match your Passport's intended use and your personal style preferences.
Each Honda Passport generation requires specific wheel considerations. Model year differences affect bolt patterns, offset requirements, and clearance specifications that determine successful wheel selection.
Early third generation models use the 5x120 bolt pattern with 64.1mm center bore. This specification creates compatibility with several other Honda and Acura vehicles. Wheels from 2007-2013 Acura MDX, 2017-2022 Honda Ridgeline, and 2009-2015 Honda Pilot mount without modifications. TPMS sensors operate at 433MHz frequency and transfer to aftermarket wheels without reprogramming.
Popular downsizing options include 18-inch wheels with 235/65R18 tires (30" overall diameter) or 265/60R18 tires (30.5" overall diameter). Both configurations provide narrower profiles than stock 20-inch setups.
Updated models offer two distinct wheel configurations based on trim level. TrailSport trim comes with 8Jx18 ET55 wheels mounted with 245/60R18 tires. EX-L, Elite, and Black Edition trims feature 8.5Jx20 ET55 wheels paired with 265/45R20 tires.
Offset specifications range from 53-57mm. Backspacing measures 169mm (6.65 inches) on 18-inch wheels and 176mm (6.93 inches) on 20-inch wheels. TrailSport models showcase pewter gray 18-inch alloys built for all-terrain capability. Black Edition models feature gloss black 20-inch wheels for premium appearance.
Latest generation models maintain established fitment requirements. Compatible wheel options follow the same specifications while offering expanded style choices for current model owners.
Oversized tire combinations can create clearance problems. The 245/70R17 size produces rubbing at full steering lock, especially during reverse maneuvers. Solutions include replacing fender liner bolts with lower-profile M8x20mm pan head fasteners and using a heat gun to flatten the liner for an additional 1/4-inch clearance.
Tires exceeding 30.5 inches in overall diameter require extensive wheel well modifications to prevent contact. Staying within one inch of stock tire diameter eliminates most clearance concerns while maintaining proper vehicle operation.
Several trusted dealers specialize in Honda Passport aftermarket wheels. College Hills Honda has sold genuine Honda wheels online since 1999. Detroit Wheel and Tire offers factory OEM wheels in multiple finishes including PVD chrome, polished, painted silver, machined, gloss black, and satin black, backed by a 100% satisfaction guarantee. Browse compatible wheel options that maintain proper specifications for your model year.
Real-world feedback shows actual performance results. Owners report that 18x8 rims with +35mm offset and 265/60/18 tires reduced fuel economy from 26 MPG to 21 MPG due to increased width and lower offset. Others confirm that 20x9 ET35 Touren TR75 wheels with 265/50/20 tires create perfect stance without rubbing issues. Black Rhino Atlas 17x8 rims represent another popular fitment choice among Passport owners.
Professional installation prevents safety risks from improper torque settings, wheel balancing errors, and clearance problems. DIY installation saves labor costs but requires specific tools and technical knowledge. Improper installation can cause lug nuts to loosen, damage suspension components, or lead to wheel failure.
Regular cleaning keeps your investment looking great. Wash wheels with mild soap after they cool down. Never apply cleaners to hot wheels, as this causes permanent staining. Painted and clear-coated wheels benefit from carnauba wax protection. Chrome wheels require special polish and should be stored during winter months in salt-treated climates.
You now have the knowledge to choose Honda Passport aftermarket wheels that deliver both style and performance. Proper bolt pattern, offset, and center bore specifications ensure perfect fitment for your specific model year. The right wheels can transform your Passport's appearance while maintaining safety and functionality.
Quality installation and regular care protect your investment for years to come. At Performance Plus Tire, we carry Honda Passport aftermarket wheels from trusted brands at competitive prices. Our fitment expertise ensures you get wheels that look great and perform flawlessly.
Ready to upgrade your Passport? Browse our selection of Honda Passport wheels and discover how the right set can make your vehicle stand out from the crowd.
Selecting the right aftermarket wheels for your Honda Passport requires understanding specific technical requirements and model differences to ensure perfect fitment and optimal performance.
• Know Your Specs: 2019-2026 Honda Passports use 5x120 bolt pattern with 64.1mm center bore and +50 to +55mm offset - verify these match before purchasing any aftermarket wheels.
• Size Matters for Performance: Wheel weight impacts performance significantly - one pound of rotating weight equals 5-10 pounds of static weight, making lighter alloy wheels preferable over steel.
• Model Year Differences: Earlier Passports (1994-2002) used 6x139.7 bolt pattern, while modern generations use 5x120 - wheels aren't interchangeable between these generations.
• Avoid Clearance Issues: Stay within one inch of stock tire diameter and maintain proper offset to prevent rubbing on suspension components during turns.
• Professional Installation Recommended: Improper torque settings or wheel balancing can cause safety hazards - professional installation ensures correct mounting and prevents component damage.
When done correctly, upgrading to quality aftermarket wheels transforms your Passport's appearance while maintaining safety and performance standards. Always prioritize proper fitment over esthetics to ensure long-term satisfaction with your investment.
Modern Honda Passports from 2019 through 2026 use a 5x120 bolt pattern with M14 x 1.5 thread size. This specification is critical because wheels must match exactly for proper mounting. Older Passport models (1994-2002) used a different 6x139.7 bolt pattern, meaning wheels from earlier generations won't fit newer models without modification.
You can change wheel sizes, but staying within one inch of your stock tire diameter prevents most clearance problems. For example, switching from 20-inch to 18-inch wheels affects speedometer accuracy and may cause rubbing if not properly sized. Aftermarket options range from 17 to 22 inches, but maintaining proper offset (+50 to +55mm) and tire compatibility is essential to avoid suspension interference.
Alloy wheels are lighter, dissipate heat better, and improve acceleration and handling due to reduced unsprung weight. They typically weigh 10-15 pounds and offer more design options. Steel wheels are heavier (over 25 pounds), more affordable, and resist impact damage better, but they're more prone to rust and have limited styling choices.
Yes, several Honda and Acura models share the same 5x120 bolt pattern and 64.1mm center bore. Wheels from 2007-2013 Acura MDX, 2017-2022 Honda Ridgeline, and 2009-2015 Honda Pilot fit 2019-2026 Passports without modification. However, always verify offset and width specifications to ensure proper fitment and avoid clearance issues.
Professional installation is recommended to eliminate safety risks from improper torque settings, wheel balancing errors, and clearance miscalculations. While DIY installation saves labor costs, it requires specific tools and technical knowledge. Improper installation can cause lug nuts to loosen, damage suspension components, or lead to wheel failure.
