F150 aftermarket wheels represent the single most dramatic upgrade you can make to transform your Ford truck's appearance and performance. We're talking about wheels that can completely change how your F150 looks and drives. Most F-150 models handle wheels up to 22 inches with the right tire sizing, giving you incredible options to create exactly the look you want. Here's what makes this upgrade so worthwhile: aftermarket wheels typically weigh less than your stock options, which means you'll actually see improved acceleration and sharper handling response.
The world of Ford F150 aftermarket wheels comes with plenty of technical details to consider, but that's where our expertise helps. Factory F150 wheels use a 6x135mm bolt pattern and feature factory offsets ranging from +44mm to +55mm depending on your specific trim level. Most F150 owners gravitate toward wheels with lower offsets and backspacing, especially when they're after that aggressive stance where the wheels extend slightly beyond the fender. That sought-after aggressive look typically means about 0.5-1.5 inches of tire extending past the fender.
We've put together this complete guide to walk you through everything about selecting the perfect wheels for your F150. From sizing and offset considerations to brand recommendations and installation guidance, we'll cover it all. Whether you want to enhance your truck's off-road capabilities or simply upgrade its street presence, you'll find exactly what you need to know about F150 aftermarket wheels right here.
Upgrading your F150's wheels delivers far more than just a visual change. The right set of aftermarket wheels can completely transform how your truck performs on the road and how it looks in your driveway. Quality aftermarket wheels for your Ford F150 represent one of the smartest investments you can make.
Aftermarket wheels typically weigh less than factory wheels, creating immediate performance advantages. This weight reduction decreases unsprung weight, which directly improves your F150's acceleration and provides sharper handling response. Many F150 owners discover that even when upgrading to larger diameter wheels, quality aftermarket options often remain lighter or comparable to smaller stock rims.
The performance benefits go well beyond just speed improvements:
Lighter wheels improve suspension compliance, allowing your truck's suspension to better absorb road impacts while maintaining tire contact
Quality aftermarket wheels feature optimized spoke designs that enhance brake cooling and overall braking performance
Wider wheels increase your tire's contact patch with the road, providing improved traction and stability during cornering
F150 owners who upgrade from 18-inch to 20-inch wheels consistently report less body roll and better cornering control. This happens because larger diameter wheels paired with shorter sidewalls dramatically reduce body roll during cornering, as shorter sidewalls flex less under cornering forces.
Nothing transforms your F150's appearance more dramatically than a set of aftermarket wheels. Factory wheels often limit your truck's visual impact, while aftermarket options let you achieve that perfect aggressive stance you're after.
Larger wheels in the 20-22 inch range maximize visual impact through commanding presence and aggressive stance. Their elaborate designs and increased diameter create the bold appearance many truck owners seek. Multi-spoke designs offer the perfect balance of style and functionality for daily driving.
The right wheel size fills your wheel wells better, giving your truck a more planted look that demands attention. One F150 forum member described this sought-after look as "stance" - that perfect combination of wheel size, tire profile, and offset that creates a balanced yet aggressive appearance.
Your F150 should reflect your personality, and aftermarket wheels provide endless opportunities for customization. Popular finishes such as matte black wheels, bronze, and blackout designs create distinctive appearances that complement the F150's bold styling.
For maximum visual impact, deep-dish concave wheels create an aggressive stance that perfectly fills wheel wells. The concave face adds depth and dimension while maintaining structural integrity. Bronze wheels create striking contrast against white, silver, and dark F150 paint colors while maintaining a sophisticated appearance.
If you're aiming for an off-road look, brands like Fuel Off-Road offer designs specifically engineered for the F150, with options like the Arc featuring sculpted multi-spoke designs, deep lips, and bold stances that look equally impressive in town or on the trail.
Aftermarket wheels provide the freedom to customize your F150 to your exact specifications, from diameter and width to backspacing, offset, and finish options. This level of personalization ensures your truck stands out from the crowd while performing better than it ever did with factory wheels.
When it comes to selecting the perfect wheels for your F150, understanding the technical aspects makes all the difference between a great fit and potential problems. These critical dimensions and specifications directly affect both how your truck looks and how it performs.
F150 trucks handle wheel diameters from 17 inches up to 22 inches, giving you serious customization flexibility. The most popular factory and aftermarket sizes break down like this:
17×9 wheels - Perfect for serious off-roaders who need maximum tire sidewall protection
20×9 and 20×10 wheels - The sweet spot for most daily drivers, balancing style with functionality
22×10 and 22×12 wheels - Maximum visual impact for street-focused builds
Most F150 owners keeping their trucks at stock height choose 20×9 wheels with 0 offset paired with 305/55R20 tires. Those wanting the big wheel look typically go with 22-inch wheels, which create maximum visual impact while maintaining daily drivability.
Tire compatibility depends on wheel diameter, width, offset, and your truck's suspension setup working together. A stock suspension F150 typically handles up to 305/55R20 tires with 20×9 wheels that have the right offset. As you move to wider tires, offset selection becomes more critical.
Wider tires, especially 12.50" wide options, require wheels with lower backspacing and offset to prevent rubbing against suspension components. Keep in mind that wheels with low backspacing paired with wide tires may require trimming your truck's valance for proper fitment.
Stock F150 wheels feature high backspacing (around 6.5") with offsets ranging from +44mm to +55mm depending on wheel width. These conservative dimensions keep wheels tucked under the fender wells for that factory appearance.
Most aftermarket wheels use considerably lower offsets to create a more aggressive stance. A wheel with +25 offset sits approximately flush with the fender, while moving to +0 offset pushes the wheel out about 1.25" beyond the fender edge.
Here's what these measurements mean:
Offset - Distance between the mounting surface and wheel centerline. Higher positive numbers push wheels inward; lower or negative numbers push wheels outward
Backspacing - Distance from the mounting surface to the wheel's back edge. Higher numbers tuck wheels more under the fender wells
Offset alone doesn't tell the complete story. A 20×9" wheel with +12mm offset has about 5.47" backspacing, while a 20×10" wheel with identical offset has 5.97" backspacing, creating different clearances.
Installing a lift kit opens up your wheel and tire options dramatically. A basic 2-inch leveling kit allows wheels up to 20×9 with +0 offset and 305/55R20 tires with minimal modification. A 3-inch lift opens possibilities for more aggressive setups like 20×10 wheels with -12 offset and 33×12.5R20 tires.
For maximum clearance, a 4-6 inch lift accommodates extreme combinations:
20×10 wheels with -18 offset and 35×12.5R20 tires
22×12 wheels with -44 offset and 35×12.5R22 tires
Consider that lift kits with larger knuckles, aftermarket upper control arms, and remote reservoir coilovers have specific backspacing requirements. Most trucks with lift kits cannot use wheels smaller than 18 inches due to clearance issues with the replacement steering knuckle.
Proper fitment requires balancing wheel size, offset, tire width, and suspension modifications. Understanding these relationships ensures you'll achieve the perfect stance without clearance problems.
When it comes to selecting F150 aftermarket wheels, knowing which brands deliver quality and which styles match your driving needs makes all the difference. We work with the top manufacturers that consistently provide performance, style, and reliability for Ford truck owners.
Fuel Off-Road dominates the market with aggressive designs that create maximum visual impact. Their deep-dish and multi-spoke options work exceptionally well for street trucks seeking an intimidating presence. Popular models include the Fuel Assault, Contra, and Rebel 6, available in multiple finishes including matte black, gunmetal, chrome, and tinted options.

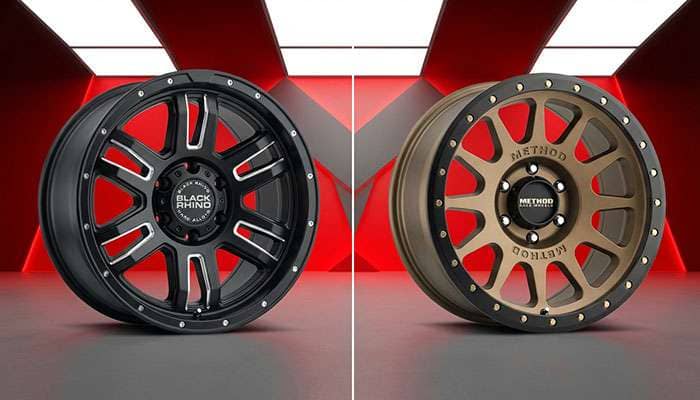

Method Race Wheels brings racing heritage to your F150. Founded by California racing enthusiasts, they prioritize creating lightweight, strong, and fast wheels. Every Method wheel undergoes rigorous testing for the harshest conditions your F150 might encounter. The Method 305 NV stands out with its 12-window design and simulated beadlock ring, starting around $300 per wheel.
American Racing combines traditional and contemporary designs with decades of truck wheel expertise. Their wheels pass stringent testing including impact testing, dynamic cornering fatigue testing, and dynamic radial fatigue testing to ensure safety.
Black Rhino specializes in truck-specific designs with proper load ratings for F150 applications, striking the perfect balance between style and functionality.
Serious off-roaders should focus on reinforced construction wheels like Method's beadlock and beadlock-style designs. These wheels feature heavy-duty construction that handles trail abuse while maintaining distinctive styling.
Street-focused trucks benefit from multi-spoke alloy wheels that provide the perfect balance of style and functionality for daily driving. Look for designs with 6-8 spokes and clean lines that complement the F150's bold styling.
Ready to find the perfect match for your specific F150? Performance Plus Tire offers an extensive F150 wheel selection tailored to your exact truck model.
Matte black remains the most versatile choice, complementing any paint color while hiding road dirt better than polished options. Bronze wheels create striking contrast against white, silver, and dark F150 paint colors while maintaining a sophisticated appearance.
The Fuel Piston in matte bronze with gloss black lip demonstrates how mixed finishes create visual depth. For those preferring classic appeal, traditional chrome options like American Racing's Torq Thrust II provide timeless style.
Most 2013-2021 F150 models accommodate wheels from 17" to 22" diameter. The 2015-2021 models typically work best with 20×9 wheels with appropriate offset. For 2021+ models, the Method Race Wheels MR305 NV in 20x9 with 18mm offset provides perfect fitment with its 6x135mm bolt pattern.
Newer models (2019-2021) handle more aggressive fitments, while 2013-2014 models may require more conservative offset choices to avoid rubbing issues.

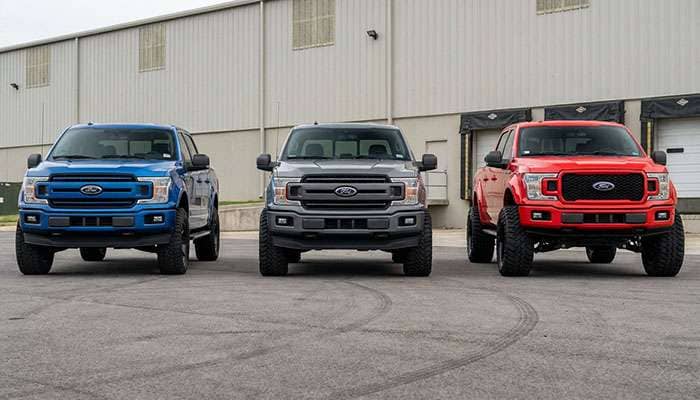

Understanding wheel dimensions can save you from costly mistakes when purchasing F150 aftermarket wheels. These technical aspects determine both how your wheels fit and how your truck performs. Here's how to decode the world of offsets and fitment.

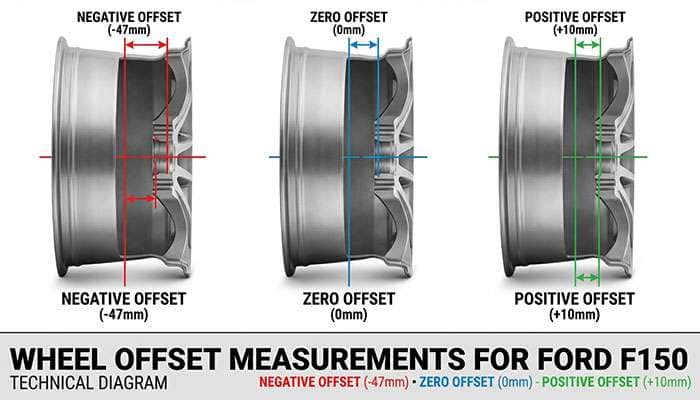

Wheel offset measures the distance between the wheel's mounting surface and its centerline in millimeters. This measurement dramatically affects both your F150's appearance and functionality. Positive offset means the mounting surface sits toward the outside face, pushing the wheel inward. Negative offset does the opposite, pushing wheels outward from your truck.
Stock F150s come with high positive offsets ranging from +44mm to +55mm. These conservative dimensions keep wheels tucked under the fenders but limit your tire width options. Aftermarket wheels typically feature lower offsets to create that aggressive stance you're looking for.
Offset Range |
Position |
Best For |
|---|---|---|
+38mm to +44mm |
Stock-like fitment |
Stock height trucks |
+30mm to +35mm |
Slightly aggressive |
Lifted F150s |
+0mm to +25mm |
Aggressive stance |
Modified trucks |
Negative offsets |
Maximum poke |
Heavily modified with trimming |
Here's an important detail: a 20×9" wheel with +12mm offset has approximately 5.47" backspace, while a 20×10" wheel with identical offset has 5.97" backspace—despite sharing the same offset value.
Backspacing measures from the mounting surface to the wheel's back edge. Higher backspacing tucks wheels under fenders; lower backspacing pushes them outward.
"Poke" describes how far your tire extends beyond the fender. Many F150 owners target +25mm offset for a flush fit. Moving to +0mm offset pushes wheels approximately 1.25" beyond fender edges, creating that aggressive appearance.
Keep this in mind: wheel width affects poke even with identical offsets. A 1-inch wider wheel adds roughly 1/2 inch of poke on each side.
The 2021 F150 uses the 6×135mm bolt pattern that's been standard since 2004. This pattern describes six lugs positioned in a 135mm diameter circle. The center bore measures 87.1mm—a critical specification for proper wheel centering.
Factory wheels match this 87.1mm bore exactly. Aftermarket options often feature larger bores requiring hub-centric rings to prevent vibration.
Rubbing happens primarily at full steering lock when tires contact crash bars or fender liners. Wheels with +30mm or higher offsets typically avoid rubbing on stock-height trucks.
For modified setups with wider tires or lower offsets, consider these solutions:
Zip-tying loose fender liners for additional clearance
Adjusting crash bars if experiencing rubbing at full turn
Choosing wheels with appropriate backspacing for your suspension setup
Minor trimming for extreme setups
Balancing offset, backspacing, and tire width prevents most rubbing issues without extensive modifications.
Getting ready to mount your new F150 aftermarket wheels? The final steps before installation involve some important technical considerations that affect both safety and performance. We'll guide you through the key details you need to know.
Most quality aftermarket wheels work perfectly with your factory TPMS sensors, though some designs require specific mounting bands instead of the original ones. Don't worry if your chosen wheels aren't TPMS compatible - you have options including outer mount adapters, 90-degree adapters, or mounting strap kits.
Lug nuts require careful attention to detail. Make sure they match your wheel's seat style (typically conical for F150s) and the correct M14x2.0 thread pattern. Here's a professional tip: always use a torque wrench instead of impact tools to prevent damage to chrome finishes and threading.
Load index numbers tell you exactly how much weight each tire can handle. A tire with index 90 supports 1,323 pounds, while index 120 supports 3,638 pounds. Never compromise on safety by choosing wheels with lower load ratings than your factory specifications.
Heavy-duty wheels provide enhanced durability but may affect ride comfort and fuel economy. The HDPP (Heavy-Duty Payload Package) wheels offer higher load ratings at 2,101 pounds compared to 1,825 pounds for standard wheels.
Complete packages from Performance Plus Tire typically include professional mounting and balancing. These packages take the guesswork out of fitment while often delivering better value than buying components separately. You get everything professionally installed and ready to go.
Many aftermarket wheel setups fit perfectly on stock suspension F150s. However, wider wheels with aggressive offsets may need leveling kits for proper clearance. We recommend having fitment specialists review each wheel purchase to confirm compatibility before installation.
At Performance Plus Tire, our expert team ensures you get the right fitment for your specific F150 setup. We take the complexity out of wheel selection so you can focus on enjoying your upgraded truck.
Ford F150 aftermarket wheels deliver the kind of transformation that makes every drive more enjoyable. We've walked you through everything from technical specifications to brand recommendations, and now you have the knowledge to make the right choice for your truck.
The bottom line? Quality aftermarket wheels offer benefits you simply can't get with factory options. Better performance, head-turning style, and the satisfaction of creating a truck that's uniquely yours. Most F150 owners discover their perfect setup with 20×9 wheels in the right offset range, but your specific needs and style preferences will guide your final decision.
Brands like Fuel, Method, Black Rhino, and American Racing have earned their reputation by delivering wheels specifically engineered for F150 applications. Whether you're building an off-road beast or a street-focused showstopper, these manufacturers offer the quality and style you're looking for.
Ready to transform your F150?
The right wheels are waiting for you. Your truck deserves an upgrade that matches your personality while delivering real performance benefits. With the information in this guide, you're prepared to select wheels that will turn heads and improve your driving experience for years to come.
Don't settle for ordinary when extraordinary is within reach. Your F150 was built to stand out – now give it the wheels to match.
Upgrading your Ford F150 with aftermarket wheels delivers both performance gains and visual transformation that makes your investment worthwhile.
• Aftermarket wheels typically weigh less than factory options, improving acceleration and handling response while reducing unsprung weight
• Most F150s accommodate 17-22 inch wheels, with 20×9 wheels at +0 to +25mm offset being the most popular choice for aggressive stance
• Stock F150s use 6×135mm bolt pattern with +44 to +55mm offset; aftermarket wheels use lower offsets for that desired "poke" beyond fenders
• Top brands like Fuel, Method, Black Rhino, and American Racing offer F150-specific designs with proper load ratings and TPMS compatibility
• Proper fitment requires balancing wheel size, offset, tire width, and suspension modifications to avoid rubbing issues
The key to successful F150 wheel upgrades lies in understanding the relationship between offset, backspacing, and tire clearance. While larger wheels maximize visual impact, the right offset creates that perfect aggressive stance without compromising functionality or requiring extensive modifications.
Most F-150 models can accommodate wheels ranging from 17 to 22 inches in diameter. The most popular aftermarket setup is typically 20x9 wheels with a 0 offset, paired with 305/55R20 tires for a stock suspension F-150.
Not necessarily. Many aftermarket wheel setups fit stock suspension F-150s. However, if you're looking to install wider wheels with aggressive offsets, a leveling kit or lift may be required for proper clearance, especially for sizes above 20 inches.
Wheel offset is the distance between the wheel's mounting surface and its centerline. It affects how the wheel sits in the wheel well and impacts both appearance and functionality. Lower offsets create a more aggressive stance, while higher offsets keep the wheels tucked under the fenders.
Top brands for F-150 aftermarket wheels include Fuel Off-Road, Method Race Wheels, Black Rhino, and American Racing. These manufacturers offer a range of styles designed specifically for F-150 applications, balancing performance, durability, and esthetics.
Quality aftermarket wheels can improve your F-150's performance by reducing unsprung weight, which enhances acceleration and handling response. They can also provide better brake cooling, increased traction due to wider tire options, and improved suspension compliance for a smoother ride.
