The 5x5 bolt pattern means five lug holes spaced evenly around a 5-inch circle. Five inches is exactly 127 millimeters, so 5x5 and 5x127 are the same pattern, one written in inches and one in metric. It is the pattern under classic General Motors half-ton trucks and just about every modern Jeep Wrangler. What it is not is 5x4.5, 5x120, or 5x115, and mixing those up is how folks end up with a wheel that will not seat.
I am Hank, and I have been bolting wheels onto trucks and 4x4s for more years than I care to admit. This pattern spans two worlds, the old GM iron I grew up on and the Jeep crowd that keeps the shop busy today. Let me lay out exactly what it is, what it fits, and how to keep from bolting the wrong wheel to your rig.
A bolt pattern, also called the lug pattern or pitch circle diameter (PCD), is described by two numbers: how many lug holes there are and the diameter of the circle their centers sit on. So 5x5 is five lugs on a 5-inch circle.
Here is the key fact to remember: 5x5 equals 5x127mm exactly. Five inches times 25.4 millimeters per inch comes out to 127 millimeters on the nose, no rounding. So when someone asks what 5x127 is equivalent to, the answer is simply 5x5 inches. Same holes, same circle, same fit. The only difference is which ruler the catalog reached for. If you want the full framework on reading any pattern, we keep a plain-English guide to wheel bolt patterns, and here is how to measure a lug bolt pattern if you need to confirm yours.
The 5x5 pattern has a long history and a busy present. General Motors moved its light trucks onto it decades ago, and Jeep adopted it for the Wrangler, which is why it is one of the most in-demand patterns in the off-road world. Common fitments include:
So this pattern lives in two camps: vintage GM trucks and modern Jeeps. Always confirm your specific year and model before you buy, because GM used other patterns before 1971 and Jeep has used different patterns on other models.
The 5x5 sits near several other five-lug patterns, and only an exact match is a safe fit. The rule never changes: the pitch circle has to match to the millimeter. Here is how 5x5 stacks up against the patterns people confuse it with.
Pattern |
Metric PCD |
In Inches |
Typical Vehicles |
Same as 5x5? |
|---|---|---|---|---|
5x5 |
127 mm |
5x5.00 |
Jeep Wrangler, classic GM trucks |
Yes, this is it |
5x127 |
127 mm |
5x5.00 |
Same (metric name) |
Yes, identical |
5x5.5 (5x139.7) |
139.7 mm |
5x5.50 |
Ford and Dodge trucks, early Broncos |
No, 12.7 mm larger |
5x4.5 (5x114.3) |
114.3 mm |
5x4.50 |
Many cars and imports, older Jeeps |
No, 12.7 mm smaller |
5x120 |
120 mm |
5x4.72 |
BMW, some modern GM |
No, 7 mm smaller |
5x115 |
115 mm |
5x4.53 |
Modern GM cars, Mopar |
No, 12 mm smaller |
No, and this one catches a lot of truck guys. A 5x5.5, also written 5x139.7, rides on a circle 12.7 millimeters bigger than your 5x5. They are two separate patterns. The 5x5.5 is the classic Ford and Dodge half-ton pattern, found on older F-150s, early Broncos, and Dodge Ram 1500s. If that is what you are chasing, we cover it in our guide to 5x5.5 wheels. Do not try to run one on the other.
No. A 5x114.3, also called 5x4.5, is 12.7 millimeters smaller across the circle. That is a big gap in bolt-pattern terms, and the lug holes will not line up. These are entirely different patterns. The only way to bridge them is a proper bolt-pattern adapter, which we cover in our guide to the benefits of wheel spacers and adapters.
No to both. A 5x120 is 7 millimeters smaller and a 5x115 is 12 millimeters smaller than your 5x127. Neither will seat correctly, and forcing a near-miss stresses the studs and is a safety risk. When the pattern does not match to the millimeter, the answer is always the same: it does not fit. Use the exact pattern or a proper adapter, nothing in between.
Good news: because 5x5 covers both the Jeep world and classic GM trucks, the selection is enormous. Whether you want a rugged off-road wheel for a Wrangler or a period-correct look for a vintage C10, there is a deep bench of choices. Here are a few of my go-to picks across the range.

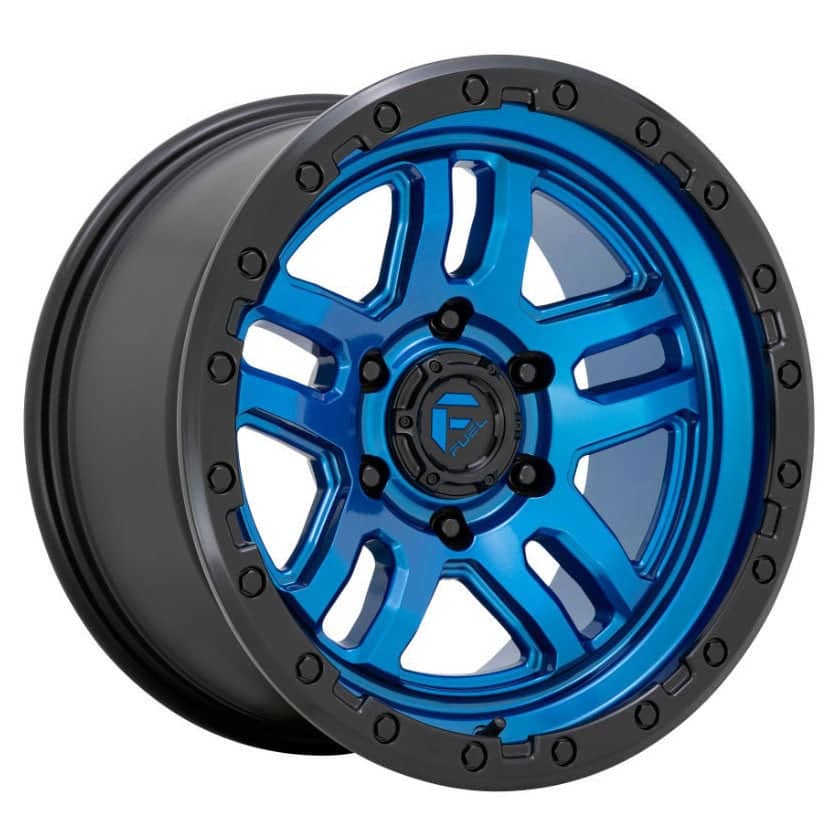

Fuel Ammo D790 (around 320 dollars). A bold, aggressive off-road wheel that is a favorite on the Wrangler. Built tough for the trail with a look that stands out.

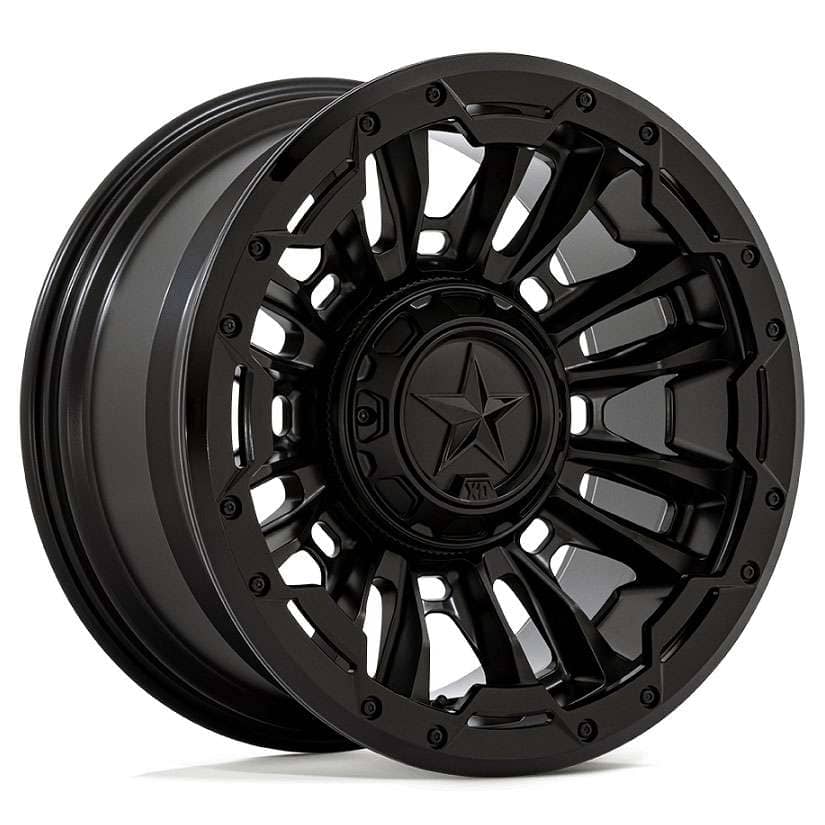

XD Series Bomber XD870 (around 496 dollars). A rugged, no-nonsense wheel for trucks and 4x4s. The kind of wheel that looks right under a lifted rig.

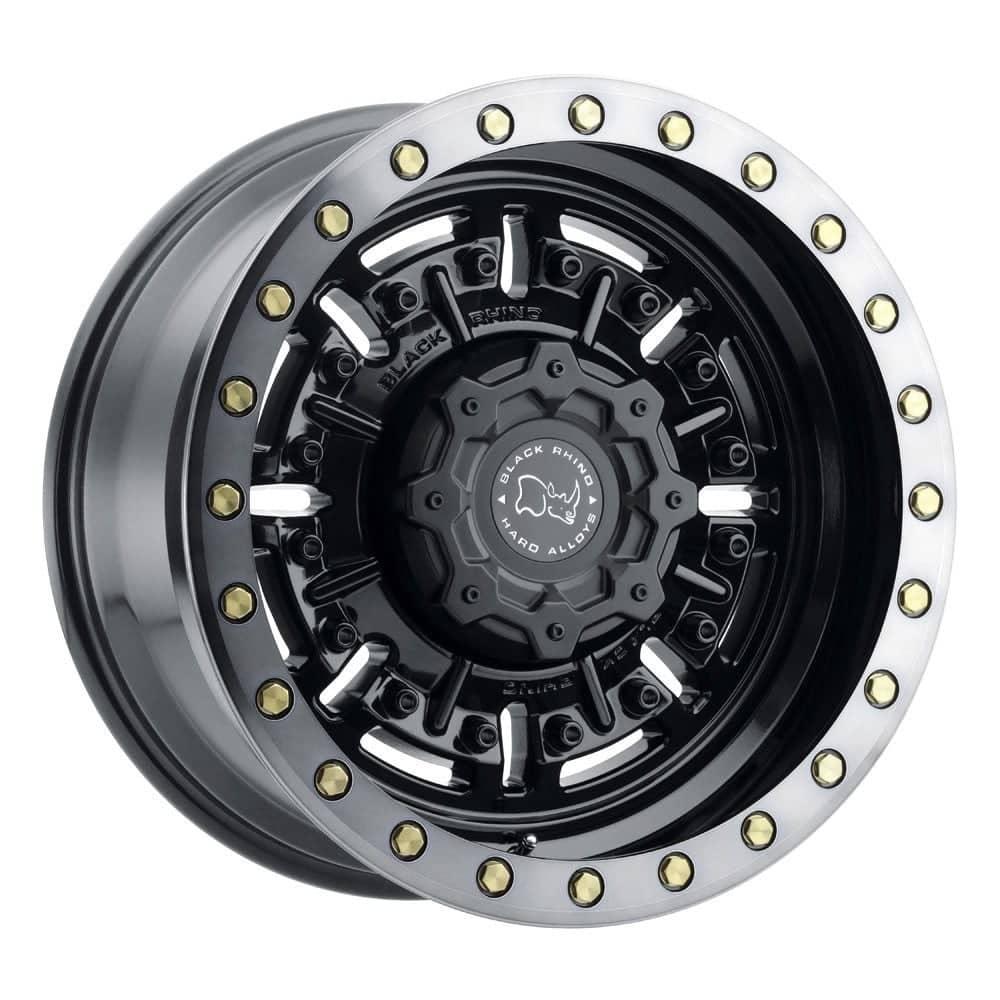

Black Rhino Abrams (around 468 dollars). Overland styling with real off-road credentials. A great fit for a Jeep or truck build headed off the pavement.
American Racing Torq Thrust M (around 285 dollars). For the classic GM truck crowd, nothing beats a Torq Thrust. Timeless five-spoke styling that looks right on a vintage C10.

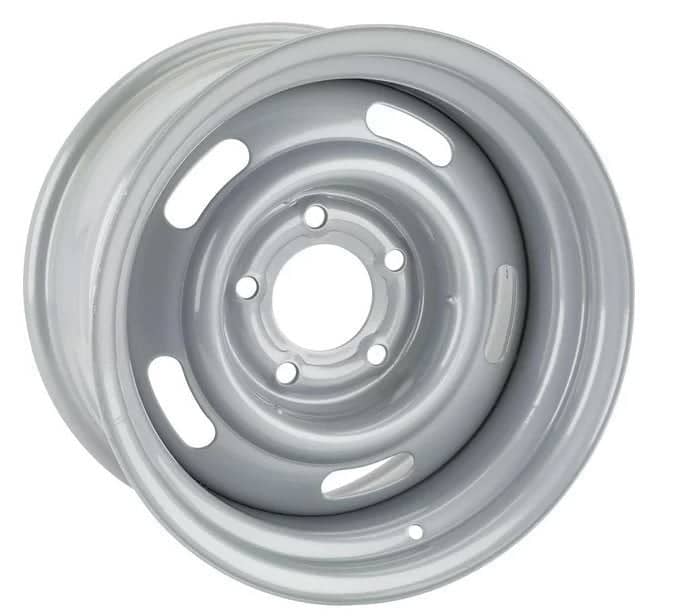

Boyd Coddington 55 Steel Rally (around 80 dollars). Our own house line and a value champ. A classic steel rally look for a vintage truck or hot rod on a budget.
Ready to see everything that fits your rig? Browse our full selection of 5x127 (5x5) wheels here.
The 5x5 bolt pattern bridges two worlds, and now you know exactly what it is: five lugs on a 5-inch circle, identical to 5x127 millimeters, under everything from a 1972 Chevy half-ton to a brand-new Wrangler. Just do not let anybody tell you a 5x4.5, a 5x120, or a 5x115 is close enough, because those are different patterns and they will not seat right. Match your pattern to the millimeter, pick a wheel that suits your build, and your rig will roll straight and true. Come see us if you want a hand getting it right.
Yes, they are identical. Five inches equals 127 millimeters exactly (5 times 25.4), so 5x5 and 5x127 describe the same five-lug pattern, one in inches and one in metric.
The 5x127 (5x5) pattern is used on the Jeep Wrangler JK and JL, Gladiator, and Grand Cherokee, along with classic Chevrolet and GMC half-ton trucks, Blazers, and Suburbans from 1971 on, plus the Hummer H3 and 1950s Cadillacs.
No. A 5x114.3 (5x4.5) is 12.7 millimeters smaller across the circle, so the lug holes will not line up. They are separate patterns and require a bolt-pattern adapter to bridge.
5x127 is equivalent to 5x5 inches. 127 millimeters divided by 25.4 equals exactly 5 inches, so the two names describe the identical bolt pattern.
No. A 5x120 is 7 millimeters smaller across the pitch circle than a 5x127, so it will not seat correctly. Forcing a near-miss stresses the studs and is a safety risk.
No. A 5x5 is 127 millimeters and a 5x5.5 is 139.7 millimeters, a difference of 12.7 millimeters. They are separate patterns. The 5x5.5 is the classic Ford and Dodge truck pattern.
No. A 5x115 is 12 millimeters smaller across the circle than a 5x127. They are different patterns and are not interchangeable without a proper adapter.
The 5x5.5 (5x139.7) pattern is the classic Ford and Dodge half-ton pattern, found on older Ford F-150s, early Broncos, Dodge Ram 1500s, and older Jeeps. It is not the same as the 5x5 pattern.
