Toyota Tacoma aftermarket wheels deliver exceptional capability and style upgrades for this legendary midsize pickup that has captivated trail enthusiasts since 1995. The Tacoma's proven off-road DNA and rugged reputation make it an ideal candidate for wheel upgrades, especially for drivers looking to maximize performance on challenging terrain.
Selecting the right wheels for your Tacoma starts with understanding the specific fitment requirements for your truck's generation. First and second generation Tacomas (1995-2011) use a 5×114.3mm bolt pattern, while third and fourth generation models (2016-present) use a 6×139.7mm pattern. This distinction is crucial when shopping for Toyota Tacoma aftermarket wheels. Stock third-generation Tacomas without modifications can fit 265/75 tires on 16-inch wheels or 265/70 tires on 17-inch wheels without rubbing. Those seeking more aggressive setups will find that a 4-inch lift can accommodate up to 33-inch tall tires with minor trimming.
We'll walk you through everything you need to know about selecting the perfect aftermarket wheels for your Tacoma, including bolt patterns, offset considerations, and size recommendations for different driving applications. Whether you own a trail-ready TRD Off-Road or the formidable TRD Pro, we'll help you find the right options to enhance your truck's performance and appearance.
Understanding the critical specifications that determine proper fitment is essential before selecting any toyota tacoma aftermarket wheels. These wheel fundamentals will help you make informed decisions and avoid costly compatibility issues.
The bolt pattern (also called lug pattern) is a fundamental specification that varies between Tacoma generations. The bolt pattern refers to both the number of lug holes and the diameter of the circle they form:
First and second generation Tacomas (1995-2004, 2005-2015) have both 5x114.3mm and 6x139.7mm bolt patterns, depending on the specific model
Third generation Tacomas (2016-2023) exclusively use the 6x139.7mm pattern
Fourth generation Tacomas (2024-present) continue with the 6x139.7mm pattern
The consistency of the 6x139.7mm pattern across multiple generations makes finding compatible wheels easier, particularly for newer models.
The toyota tacoma lug pattern is expressed as two numbers. For instance, 6x139.7mm (or 6x5.5") means:
The wheel has six lug holes
These lugs form a circle with a diameter of 139.7mm (or 5.5 inches)
Other critical specifications include:
Thread size: Most Tacomas use M12x1.5 lug nuts (though some sources report M14x1.5)
Torque specifications: 83-89 ft-lbs, depending on wheel material
Hub bore: 106.1mm for 1995-2023 models, but the 2024-2025 Tacoma features a smaller 95.1mm hub bore
This change in hub bore size means that older Tacoma wheels won't be hub-centric on the newest models without hub-centric rings for proper fitment.

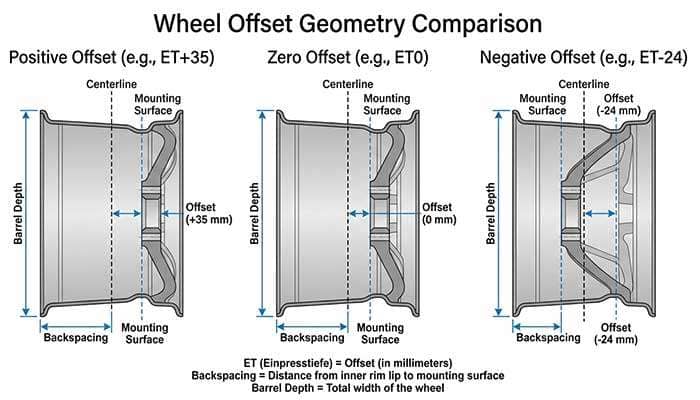

Offset and backspacing determine how your wheels sit relative to the fenders and suspension components.
Offset is the distance from the wheel's centerline to its mounting surface. There are three types:
Positive offset: Wheels sit further inside the fender (+15mm to +35mm is close to factory stance)
Zero offset: The mounting surface aligns with the wheel's centerline
Negative offset: Wheels protrude outward (-24mm to 0mm creates an aggressive stance)
For 2024-2025 Tacomas, stock wheel offsets vary by trim:
TRD Off-Road: +55mm offset with 7.5-inch wide wheels
TRD Pro: +45mm offset
Backspacing measures the distance from the wheel's mounting surface to its back edge. This measurement is crucial for ensuring adequate clearance between the wheel and suspension components.
The diameter, width, and offset of your toyota tacoma aftermarket wheels significantly impact your truck's performance and appearance:
Diameter: Most Tacomas use 16" to 18" wheels from the factory
16" wheels allow for more tire sidewall, providing better cushioning for off-road driving
17" wheels offer a balance between off-road capability and on-road performance
18" wheels provide a more aggressive street appearance but with less sidewall protection
Width: The ideal width for most Tacomas ranges from 7" to 9"
Wider wheels can accommodate wider tires for improved traction
Excessively wide wheels may cause rubbing against suspension components
Performance implications: Larger wheels typically result in:
Improved cornering stability (with proper offset)
Reduced unsprung weight with high-quality wheels
Altered gear ratios that affect acceleration and fuel economy
Changed ground clearance depending on the tire/wheel combination
Finding the right balance between wheel size, offset, and tire size is essential for optimizing your Tacoma's performance both on and off the road.
Understanding the differences between OEM and aftermarket wheels helps you make the right upgrade decision for your Tacoma. Factory wheels serve their purpose, but aftermarket options open up a world of performance and style possibilities that simply aren't available from Toyota.
Toyota has equipped each Tacoma generation with different wheel configurations that reflect the era's priorities:
First Generation (1995-2004):
15-inch steel or alloy wheels standard
16-inch upgrades available on higher trims
Offset ranges from +30mm to +25mm
6-inch width typical across most models
Second Generation (2005-2015):
16-inch wheels standard on base models
17-inch alloys on TRD and premium trims
Predominantly +30mm offset
Width ranges from 6.5 to 7.5 inches
Third Generation (2016-2023):
16-inch steel wheels on base SR models
17-inch alloys on SR5 and TRD Sport/Off-Road
18-inch options on Limited trims
Offset typically between +30mm to +25mm
Width ranges from 7 to 7.5 inches
Fourth Generation (2024-present):
TRD Off-Road: 17×7.5 inches with +55mm offset
TRD Pro: 18×8 inches with +45mm offset
Limited and higher trims: 18-inch options standard
The advantages of upgrading to toyota tacoma aftermarket wheels become clear when you consider what factory wheels can't deliver:
Enhanced Off-Road Performance: Aftermarket options provide wider footprints and stronger construction designed specifically for challenging terrain. Factory wheels prioritize cost over capability.
Unlimited Style Options: Choose from countless designs, finishes, and spoke patterns that let you personalize your Tacoma's appearance. Factory wheels offer limited aesthetic variety.
Weight Savings: High-quality aftermarket wheels often weigh significantly less than factory counterparts, reducing unsprung weight and improving handling, acceleration, and fuel economy.
Size Flexibility: Aftermarket manufacturers offer diverse diameters, widths, and offsets that factory limitations simply don't allow.
Superior Durability: Premium aftermarket wheels utilize advanced materials and construction methods, making them more resistant to damage from rocks and trail obstacles.
Aftermarket wheels also enable more aggressive offsets that create a wider stance, improving stability during cornering and off-road maneuvers.
While Toyota builds reliable trucks, factory Tacoma wheels have several notable shortcomings:
Conservative Design Philosophy: OEM wheels prioritize mass appeal over specialized performance or striking looks. Even TRD Pro models feature restrained styling compared to what's available in the aftermarket.
Strength Limitations: Factory wheels, especially on non-TRD models, aren't engineered for extreme off-road punishment. They can bend or crack under heavy impacts during aggressive trail use.
Excess Weight: OEM wheels typically carry more weight than premium aftermarket alternatives, which hurts acceleration, braking performance, and fuel efficiency.
Size Restrictions: The narrow range of factory sizes limits tire choices and performance modifications. Third-generation Tacoma OEM wheels struggle to accommodate tires larger than 265/70R17 without vehicle modifications.
Corrosion Problems: Many owners experience premature corrosion on factory wheels, particularly in areas with road salt or coastal conditions.
Quality toyota tacoma aftermarket wheels address these limitations through specialized designs tailored to specific performance goals, whether that's rock crawling, desert running, or achieving a more aggressive street appearance.
Choosing the right size toyota tacoma aftermarket wheels can make or break your truck's performance and style. Different wheel dimensions serve distinct purposes, whether you're building a trail-ready beast or creating an aggressive street presence.

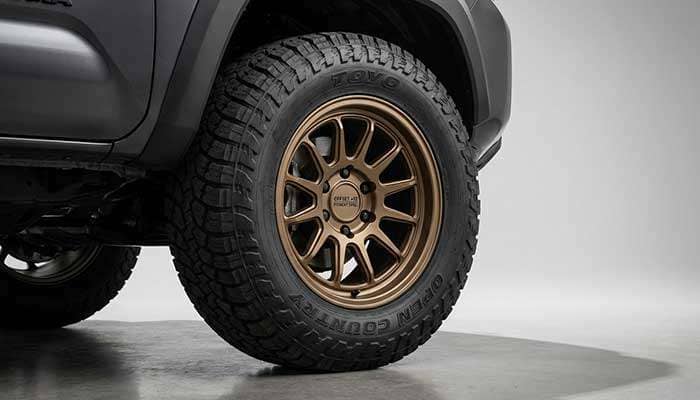

We recommend 17×9 wheels as the ideal choice for Tacoma owners who want serious off-road capability without sacrificing daily drivability. This configuration delivers excellent sidewall protection while maintaining the precise handling you need. The extra tire sidewall provides crucial cushioning when you're tackling rough terrain and rock-filled trails.
Stage 3 Motorsports notes that 17×9 wheels are "perfect for 2005-2025 Tacoma or 4Runners looking to gain some extra sidewall with the ability to choose specific backspacing or offset options". These wheels create that tough, off-road aesthetic while giving you the flexibility to dial in your truck's stance exactly how you want it.
A popular setup that delivers outstanding all-terrain performance pairs Method MR316 17×8.5 with +0 offset and BF Goodrich A/T KO2 265/70R17 tires, offering excellent capability with minimal rubbing concerns.
For drivers who prioritize head-turning style, 20×9 wheels create an unmistakably bold presence. Stage 3 Motorsports identifies this size as "one of the best ways to make a statement on your 2005-2025 Toyota Tacoma". These larger wheels maintain enough sidewall for comfort while delivering the aggressive look that turns heads wherever you go.
Modern 20×9 wheels work surprisingly well off-road when paired with the right tire selection. They're also compatible with moderate lift setups, making them versatile options for daily drivers who occasionally hit the trails.
The offset you choose dramatically affects both how your truck looks and performs. Our experience shows the most effective range spans from +1 to -19mm. Here's what each range delivers:
+1 offset: Creates a nearly flush appearance with minimal wheel poke
0 offset: Provides a slightly more aggressive stance with good clearance
-12 to -19 offset: Delivers that coveted wide stance with wheels pushed outward

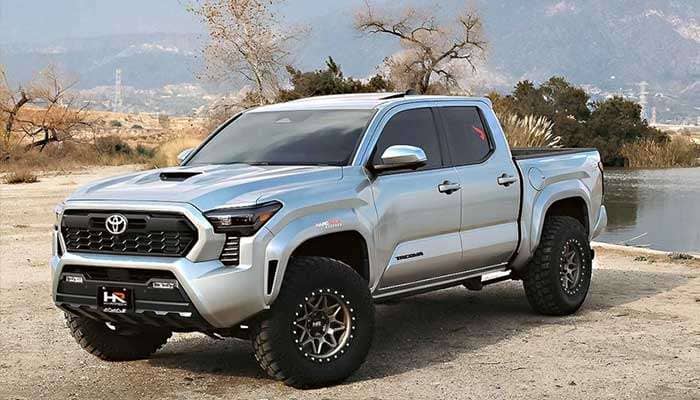

Hardrock Offroad reports their most popular Tacoma wheel offsets fall precisely within this +1 to -19 range.
Getting the right tire-to-wheel combination ensures optimal performance. For 17×9 wheels, proven options include:
285/70R17 (approximately 32.7" diameter)
265/70R17 (approximately 31.6" diameter)
33×12.50R17LT (true 33" diameter)
For 20×9 wheels, consider these combinations:
285/60R20 (approximately 33" diameter)
33×12.50R20LT (true 33" diameter)
315/60R20 (for lifted applications)
Ready to find your perfect Toyota Tacoma aftermarket wheels? Browse our extensive selection of sizes and styles at Performance Plus Tire.
Each generation of the Tacoma requires specific wheel fitment considerations, making it essential to match toyota tacoma aftermarket wheels with your truck's production year. Here are the proper specifications across all generations.
The second-generation Tacomas from this era utilize the 6x139.7mm bolt pattern across all trims, including Base, Pre Runner, X-Runner, and TRD models. Wheel offset typically ranges between +15mm to +25mm for optimal performance, with factory wheels measuring 16-17 inches in diameter depending on trim level.
Tacomas from 2012-2015 maintain the same 6x139.7mm bolt pattern as their earlier counterparts. These models accept similar aftermarket options with 16-18 inch diameters and +15mm to +25mm offsets working well for most applications. For these trucks, 265/75R16 or 265/70R17 tires offer a modest upgrade without requiring modifications.
Third-generation Tacomas feature specific factory configurations: 16x7 +23mm (SR5), 16x7 +13mm (Off-Road), 16x7.5 +10mm (PRO), and 17x7.5 +30mm (Sport). The optimal aftermarket setup generally includes 16-17 inch wheels with offsets ranging from +30mm to -25mm, with 0mm offset providing excellent balance. Rim widths between 7-9 inches work best for most applications.
The fourth-generation Tacoma continues with the 6x139.7mm bolt pattern and 106.1mm center bore. Factory configurations vary by trim: SR/SR5 use 245/70R17 tires, while TRD Sport/Pro/Trailhunter models feature 265/70R18 setups. Aftermarket options with offset ranges of +25mm to +35mm suit daily drivers, while 0mm to +15mm creates a more aggressive stance.
With a 2.5-inch front lift, these newer Tacomas can accommodate 35x12.5-inch tires on 17x8 +25mm wheels. Browse the extensive selection of perfectly-sized options at Performance Plus Tire to find wheels that match your generation's requirements.
Beyond size and offset, the manufacturing method of your toyota tacoma aftermarket wheels significantly impacts durability, weight, and performance. Understanding the differences between construction types helps match your wheel choice to driving habits.
Cast wheels dominate the Tacoma aftermarket because they balance cost and functionality effectively. Manufactured by pouring molten aluminum into molds, these wheels provide solid durability for most driving conditions. Unlike steel options that may rust when damaged, aluminum cast wheels offer better corrosion resistance. Most off-road trucks and SUVs utilize cast wheels due to their practical price point.
When choosing cast wheels, look for reputable manufacturers that use quality aluminum alloys. We recommend cast options for weekend off-roaders and daily drivers who need reliable performance without breaking the bank.
Flow formed wheels represent the sweet spot between performance and price. These start as cast wheels but undergo additional processing where the barrel is spun, stretched, and compressed. This technique creates wheels that are significantly stronger than standard cast options while reducing weight.
The RR5-S flow-formed wheels offer exceptional strength-to-weight ratio while improving acceleration, braking, and handling response. Their enhanced heat dissipation keeps brakes cooler during demanding off-road sessions. For serious trail riders who want noticeable performance gains, flow-formed construction delivers excellent value.
For those seeking maximum performance, forged wheels represent the pinnacle of wheel construction. Machined from solid aluminum blocks under intense pressure and heat, these wheels deliver unmatched strength while minimizing weight. Popular options like RAYS Volk Racing TE37XT have earned devoted followings among serious off-roaders.
The premium construction means forged wheels can handle extreme impacts better than other types. However, they come with substantially higher price tags that may not suit every budget.
Your driving environment and budget should determine your wheel selection. Weekend trail riders maintaining daily drivability will find flow-formed options provide an excellent balance of strength and weight reduction. Daily drivers who rarely see challenging terrain might find cast wheels perfectly adequate for their needs.
Find the ideal toyota tacoma aftermarket wheels for your specific needs at Performance Plus Tire.
Selecting the right aftermarket wheels for your Toyota Tacoma comes down to understanding key fitment factors that determine both performance and appearance. We've covered how bolt patterns, offsets, and backspacing work together to create your ideal wheel setup. We've also explored how wheel dimensions impact your truck's capabilities on highways and trails.
Aftermarket wheels offer significant advantages over factory options, especially for drivers seeking improved durability, reduced weight, or distinctive styling. The popular 17×9 configuration provides that ideal balance between off-road performance and daily drivability, while 20×9 wheels deliver the aggressive look many Tacoma owners desire.
Your truck's generation plays a crucial role in wheel selection. First and second-generation models use different bolt patterns than newer Tacomas, making compatibility research essential before any purchase. Understanding the differences between cast, flow-formed, and forged construction helps match your wheels to specific driving conditions and budget requirements.
Consider your Tacoma's wheels as more than just appearance upgrades – they fundamentally change how your truck performs across various terrains. The right combination of size, offset, and construction creates a foundation for everything from rock crawling to highway cruising.
Before making your final decision, consider your primary driving environment, desired tire size, and whether you've installed lift kits or other suspension modifications. These factors will guide you toward the perfect aftermarket wheels that enhance both capability and appearance without sacrificing reliability.
Finding the ideal Toyota Tacoma aftermarket wheels doesn't have to be overwhelming. Armed with the knowledge from this guide, you can confidently select wheels that perfectly match your performance needs and personal style. Ready to upgrade your Tacoma? Browse our extensive selection of Toyota Tacoma aftermarket wheels at Performance Plus Tire to find the perfect fit for your truck.
Understanding the right wheel specifications is crucial for Toyota Tacoma owners looking to upgrade their truck's performance and appearance while maintaining proper fitment and safety.
• Know your bolt pattern: 2016+ Tacomas use 6×139.7mm, while earlier generations vary—this determines wheel compatibility and prevents costly mistakes.
• Optimize offset for your needs: +1 to -19mm offset range balances aggressive stance with clearance, while factory offsets maintain conservative positioning.
• Choose 17×9 wheels for versatility: This size offers the best balance of off-road capability, tire sidewall protection, and on-road comfort for most drivers.
• Match construction to usage: Cast wheels suit budget-conscious daily drivers, flow-formed provides performance balance, forged delivers maximum strength for extreme use.
• Consider generation-specific requirements: Each Tacoma generation has unique hub bore sizes and factory configurations that affect aftermarket wheel compatibility and performance.
The key to successful wheel upgrades lies in balancing your performance goals, budget, and driving environment while respecting your truck's mechanical limitations and safety requirements.
A 17x9 wheel configuration offers an excellent balance of off-road capability and on-road comfort for most Tacoma owners. This size allows for substantial tire sidewall, providing better cushioning on rough terrain while maintaining good handling characteristics.
For third-generation Tacomas (2016-2023) without modifications, you can typically fit 265/75 tires on 16-inch wheels or 265/70 tires on 17-inch wheels without rubbing. However, larger sizes may require lift kits or trimming.
Cast wheels are affordable and durable, suitable for most driving conditions. Flow-formed wheels offer a balance of performance and price, with improved strength and reduced weight. Forged wheels provide maximum strength and minimal weight but come at a premium cost.
Wheel offset determines how your wheels sit relative to the fenders. A range of +1 to -19mm offset is popular for Tacomas. Positive offset (+1 to +15mm) provides a more flush appearance, while negative offset (-12 to -19mm) creates a more aggressive stance with wheels pushed outward.
Consider your truck's generation for proper bolt pattern and fitment, desired wheel size and offset for your driving needs, construction type based on usage (cast, flow-formed, or forged), and compatibility with your current or planned suspension setup. Also, factor in your budget and primary driving environment when making a decision.
