6 lug chevy wheels have been the standard configuration for most Chevrolet trucks since the late 1960s. The 6x5.5 bolt pattern (also measured as 6x139.7mm) dominates Chevrolet's truck and SUV lineup by a significant margin. This specific wheel configuration features six lug nut holes arranged in a circular pattern, creating a distinct mounting system that's become synonymous with Chevy trucks.
When it comes to selecting chevy 6 lug rims for your vehicle, understanding the bolt pattern is essential for proper fitment. The term "6x5.5" refers to six lug nuts positioned in a circle with a diameter of 5.5 inches (or 139.7mm). However, simply knowing your chevy 6 lug bolt pattern isn't enough to guarantee the perfect fit. For Silverado 1500, Suburban, and Tahoe models, we recommend wheel sizes that typically range between 18-20 inches in diameter and approximately 9 inches in width. Additionally, not all 6 lug truck wheels are universally compatible with every Chevy model, despite sharing the same bolt pattern.
We understand that choosing the right wheels for your Chevy truck can be overwhelming with so many options available. That's why we've created this guide to walk you through everything you need to know about selecting the right 6 lug Chevy wheels for your vehicle, ensuring both proper fitment and optimal performance.
The bolt pattern of your Chevy truck forms the foundation of proper wheel fitment. Understanding this crucial specification prevents costly mistakes when purchasing new wheels and ensures optimal performance for your vehicle.
The bolt pattern consists of two essential numbers that tell you everything about how a wheel mounts to your vehicle. For Chevy trucks and SUVs, the most common pattern is 6x5.5 inches or 6x139.7mm. Breaking this down:
The first number (6) indicates the number of lug bolts on each wheel
The second number (5.5 or 139.7) represents the diameter in inches or millimeters of the imaginary circle formed by the lug bolts
These two measurements are identical - one uses the imperial system (inches), while the other uses the metric system (millimeters). This bolt pattern has remained consistent since the 1960s, particularly for Chevy's 1500 series 4x4 pickup trucks.

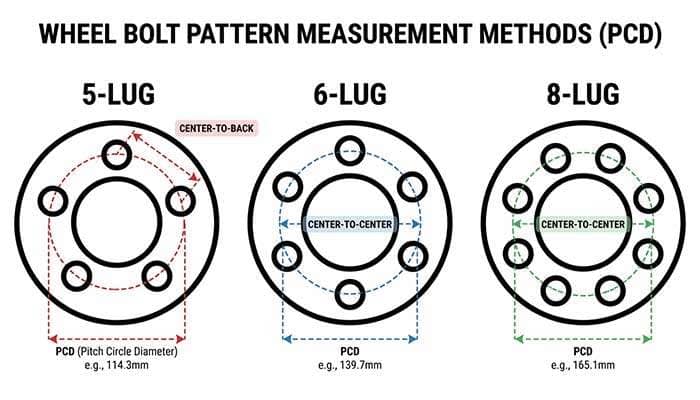

For 6-lug wheels, measurement is straightforward because of their even number configuration. Follow these steps:
Select any lug bolt as your starting point
Measure from the center of this bolt straight across to the center of the opposite bolt
The resulting measurement should be approximately 5.5 inches or 139.7mm
The 6-lug pattern allows for a simple straight-line measurement, unlike odd-numbered lug patterns which require diagonal measurements. If you're uncertain about your measurements, consult your vehicle's owner's manual or ask a professional at your Chevrolet service center.
Not all Chevy 6-lug patterns are identical, despite what many assume. While the 6x5.5 (139.7mm) pattern is most common, variations exist across different models and years.
From 1973-1998, many Chevy full-size trucks used the 5-127 metric pattern. Other vehicles with compatible 6x139.7 patterns include:
GMC Sierra 1500 (matching years)
Chevy Tahoe/Suburban (later models)
Chevy Avalanche
Some Toyota Tundra models
This standardization offers considerable flexibility when looking for replacement or custom wheels. Many vehicles under the GMC umbrella share identical bolt patterns with their Chevrolet counterparts.
Chevrolet has consistently used the 6-lug wheel configuration across numerous vehicles in their lineup, primarily in their trucks and SUVs. The standardized 6x5.5 inches (6x139.7mm) bolt pattern provides convenient interchangeability among certain models.
The Silverado 1500 stands as the flagship model using the 6-lug bolt pattern, featuring this configuration from 1999 through current 2025 models. Colorado models from 2004-2012 used the same 6x5.5 pattern, though with typically higher positive offset compared to the Silverado.
Compatibility between these models requires careful attention to details beyond the bolt pattern. First-generation Colorados (2004-2012) can typically interchange wheels with Silverados due to their identical 6x5.5 bolt pattern. However, later Colorado models switched to a different pattern, making them incompatible with Silverado wheels.
Hub rings are often necessary when fitting Colorado wheels onto a Silverado, since Colorado hub centers tend to be larger. This simple addition ensures proper centering and prevents vibration issues.
Chevrolet's larger SUVs typically match the 6-lug pattern found on their truck counterparts. Contemporary Tahoe and Suburban models feature the standard 6x139.7mm bolt pattern. The Chevrolet Avalanche (2001-2013) similarly used this configuration, making wheel sharing possible among these platforms.
For specific applications like the 2015-2020 Tahoe, wheels often feature backspacing around 6.1 inches with offsets near 28mm. Even within the 6-lug family, proper offset remains crucial for achieving the right fitment and performance.
Not all Chevrolet vehicles use the 6-lug standard. Heavy-duty models employ different configurations for increased load capacity:
Silverado 2500HD and 3500HD (pre-2011): 8×165.1mm pattern
Silverado 2500HD and 3500HD (2011-2025): 8×180mm pattern
Express vans (8-lug configurations): 8×6.5 inches (165.1mm)
Avalanche 2500 (2004-2009): 8×6.5 inches (165.1mm)
The distinction between 6-lug and 8-lug variants relates directly to load capacity requirements. 8-lug wheels provide additional strength for heavy-duty applications. Generally, 6-lug 3/4-ton trucks represent upgraded 1/2-ton platforms, while 8-lug variants derive from 1-ton foundations designed for maximum durability and load-bearing capacity.
Selecting proper fitment for your 6 lug chevy wheels involves more than just matching bolt patterns. The right combination of wheel size, offset, and tire dimensions creates the perfect balance between performance, appearance, and functionality.
The Silverado 1500, Suburban, and Tahoe perform best with wheels between 18-20 inches in diameter and approximately 9 inches in width. Each size offers distinct advantages:
18x9 wheels provide greater comfort through taller sidewalls, better absorption of road imperfections, and slightly improved fuel economy thanks to reduced weight
20x9 wheels deliver sharper handling with improved steering response and cornering precision, albeit with a firmer ride
For those seeking a more aggressive stance, 10-12 inch wide wheels remain viable options.
Factory Chevy trucks typically feature positive offset measurements ranging from +24mm to +31mm with backspacing between 5.44" to 6.10". Understanding these measurements is crucial for proper fitment.
Offset determines wheel positioning relative to the hub—positive numbers push wheels inward, negative numbers create more outward stance. For example, a wheel with -12mm offset and 5.75" backspacing would push tires out approximately 1.5 inches beyond stock position.
Fender trimming becomes necessary primarily with wider wheels featuring deeper negative offsets. Even moderate setups sometimes require trimming at full steering lock, particularly in reverse. Modification typically involves cutting plastic valence edges and occasionally metal components on the front bumper.
Tire dimensions must complement wheel specifications. With a 2" leveling kit, 285/55R20 tires work excellently on factory 20" wheels. Additionally, 3.5" lift kits accommodate larger options including 295/55R20 or 305/55R20 on 20x9 wheels with various offsets.
We carry the best selection of 6-lug Chevy wheels from top manufacturers who understand what your truck demands. These mechanic-recommended models deliver the perfect combination of durability, style, and precise fitment for your Chevrolet.
The TIS 544BM delivers sharp styling with its gloss black finish and milled accents design, available in sizes from 18 to 26 inches. This wheel comes in widths from 9 to 14 inches with offsets ranging from -76mm to 18mm. The TIS 560BM features a bold Y-shaped spoke pattern that forms a distinctive mesh design, perfect for enhancing your truck's aggressive stance.

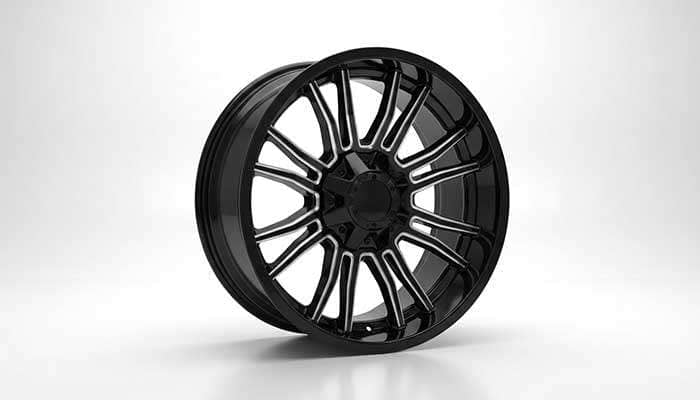

The Moto Metal MO970 stands out with its rugged gloss black finish and spot-milled lip design. Available in multiple fitments including 20x9 with 18mm offset specifically engineered for Chevy trucks. The Kraken model offers a concave profile with a split 10-spoke design and sharp milled accents, available in sizes like 20x10 with -18mm offset.
The Vision 375 Warrior showcases a split-spoke design with gear-type cutouts and machined lip accents. Constructed from durable cast aluminum with a one-year warranty on the gloss black finish.
The Anthem Avenger features over 20 windows throughout its design, complemented by 12 milled rivets in a beadlock pattern. The ARKON Mandela, designed by Jon Chartier, showcases a directional split-spoke design with intricate milling and "endless lip" appearance.
At Performance Plus Tire, we offer the largest selection of 6-lug Chevy wheels at the lowest prices. Visit Performance Plus Tire to find your perfect match.
Selecting the right 6-lug wheels for your Chevrolet truck or SUV involves more than just matching the 6x5.5 (139.7mm) bolt pattern. We've covered how proper wheel selection impacts both performance and appearance for your vehicle. The standardized 6-lug configuration offers flexibility across many Chevy models, though specific measurements like offset, backspacing, and wheel dimensions still require careful attention.
Your choice between popular sizes like 18x9 and 20x9 wheels depends on your driving priorities - comfort and fuel economy versus handling and appearance. Understanding offset measurements is crucial for achieving your desired stance without compromising functionality or requiring excessive trimming.
We've highlighted several mechanic-recommended options from respected manufacturers like TIS, Moto Metal, Vision, and ARKON that deliver both performance and style. These selections represent just a fraction of available options that properly fit your Silverado, Colorado, Tahoe, or Suburban.
At Performance Plus Tire, we carry the best selection of 6-lug Chevy wheels at the lowest prices. Our extensive inventory includes all the top brands and latest designs to match your specific vehicle and style preferences. We believe in providing top-notch wheels at prices that won't break the bank.
Ready to upgrade your Chevy truck? Browse the complete collection of 6-lug Chevy wheels at Performance Plus Tire to find your ideal match. Our expert team is ready to help you find the perfect wheels for your ride, ensuring both style and functionality. With the knowledge from this guide, you can make an informed decision that enhances both your truck's performance and appearance for years to come.
Understanding proper wheel selection for your Chevy truck ensures optimal performance, safety, and esthetics while avoiding costly fitment mistakes.
Proper wheel selection balances technical specifications with your driving needs, ensuring both performance and visual appeal for your Chevrolet vehicle.
While many Chevy trucks and SUVs use the 6x5.5" (139.7mm) bolt pattern, not all 6-lug wheels are universally compatible. Factors like offset, backspacing, and wheel dimensions can affect fitment across different models and years.
For most Chevy trucks, an offset between -12mm to +20mm works well. This range typically provides a more aggressive stance without causing rubbing issues. Factory wheels usually have a positive offset of +24mm to +31mm.
Popular sizes for Chevy trucks and SUVs include 18x9 and 20x9 inches. 18-inch wheels offer better comfort and fuel economy, while 20-inch wheels provide sharper handling and a more aggressive look.
The 6-lug wheel configuration is common on many Chevy trucks and SUVs. Models like the Silverado 1500, Colorado, Tahoe, and Suburban often feature this setup, offering a good balance of strength and versatility.
Fender trimming may be necessary when installing wider wheels with deep negative offsets. Even moderate setups sometimes require trimming at full steering lock, particularly in reverse. Always check fitment carefully to determine if modifications are needed.
