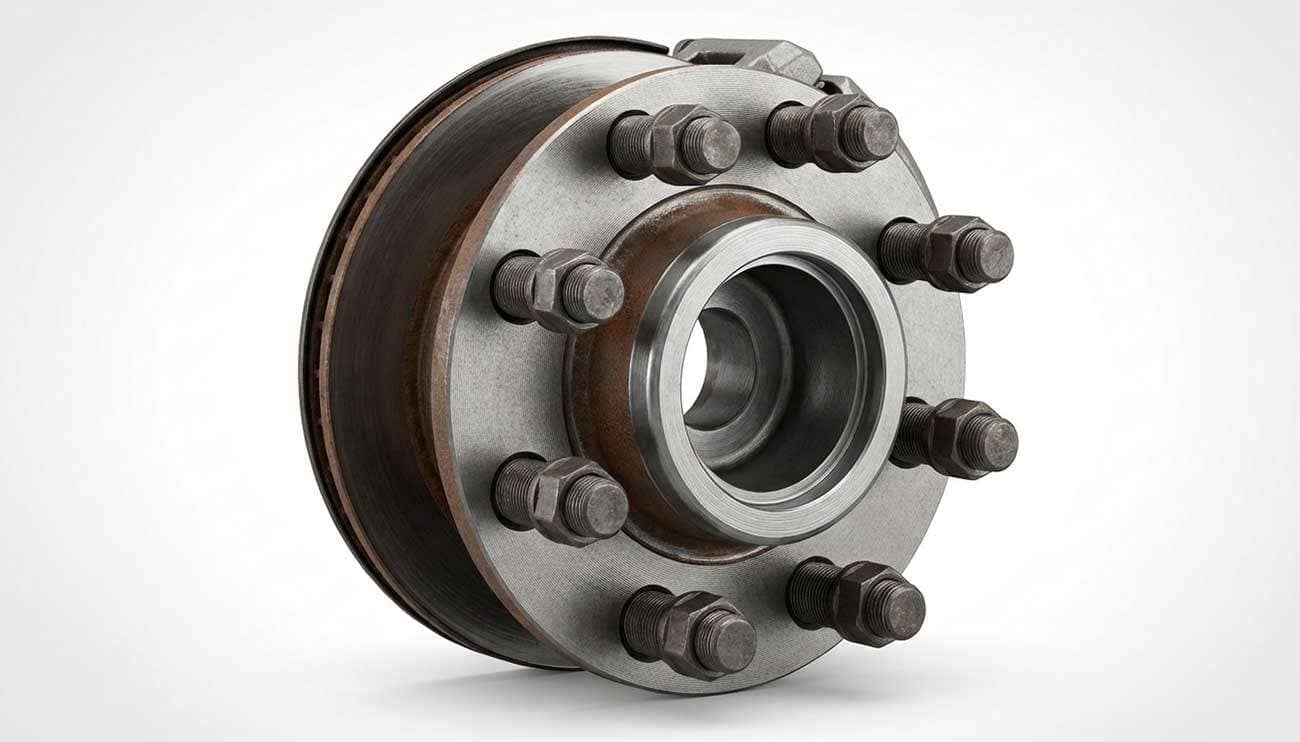

The 8x180 bolt pattern appears on specific heavy-duty trucks and represents a critical fitment specification for wheel selection. This pattern features 8 stud nuts arranged on a pitch circle diameter of 180 millimeters or 7.08 inches.
Heavy-duty truck applications demand robust wheel mounting systems, and the 8x180 configuration delivers exactly that strength and reliability. General Motors introduced this bolt pattern to their heavy-duty truck lineup, making it standard equipment on specific models. You'll find the 8x180 pattern on Chevrolet Silverado 2500HD and 3500HD models, plus GMC Sierra 2500HD and 3500HD trucks manufactured from 2011 forward.
The automotive industry uses several 8-lug configurations for different applications. Four main 8-lug patterns dominate the market: 8×165.1, 8×170, 8×180, and 8×200, each serving distinct vehicle requirements. Knowing your exact bolt pattern becomes essential before selecting new wheels.
This guide covers everything you need to understand about the 8x180 bolt pattern. We'll explore compatible vehicles, compare different patterns, and explain how adapters can expand your wheel options for better fitment solutions.
Selecting the right wheels for your heavy-duty truck starts with understanding your bolt pattern. The 8x180 configuration offers specific advantages that make it essential for certain vehicle applications.
Two numbers define every wheel bolt pattern and determine compatibility. The first number (8) tells you how many lug holes are spaced equally around the wheel's center. The second number (180) represents the diameter in millimeters of the circle formed by these lug holes' centers, known as the bolt circle diameter (BCD).
Imperial measurements convert this 180mm diameter to approximately 7.09 inches (180 ÷ 25.4). Both metric (8x180mm) and imperial (8x7.08") formats describe identical physical dimensions. Vehicle manufacturers typically specify one format based on their origin and manufacturing standards.
The pitch circle diameter creates the foundation for any bolt pattern measurement. PCD represents the diameter of an imaginary circle that passes through the center of all wheel studs or bolts.
Wheels with even lug numbers like the 8-lug configuration allow direct measurement from one lug center to the directly opposite lug center. The PCD remains a theoretical dimension that basic tools cannot always measure precisely.
Proper PCD identification becomes crucial when selecting new wheels. Mismatched patterns prevent proper installation.
Heavy-duty trucks need robust wheel mounting systems that handle substantial loads. The 8-lug design provides distinct advantages over configurations with fewer mounting points.
Eight mounting points create perfect spacing with lugs positioned exactly 45 degrees apart. This arrangement distributes force evenly during acceleration, braking, and cornering. The wider 180mm bolt circle expands the contact area between wheel and hub, managing stress effectively during heavy loading conditions.
The 8-lug design reduces wear on individual mounting points compared to six-lug patterns. This enhanced durability makes it ideal for trucks designed to haul heavier loads, providing necessary strength for towing, hauling, and off-road applications[64].
General Motors made a significant change to their heavy-duty truck lineup in 2011 by introducing the 8x180 bolt pattern. This exclusive configuration appears only on specific Chevrolet and GMC heavy-duty trucks from 2011 onward.
Chevrolet switched to the 8x180 bolt pattern for the Silverado 2500HD starting in 2011. This marked a major departure from the previous 8x6.5" pattern used on earlier models. The new configuration spans multiple platform generations: GMT900 (2011-2014), K2XX (2015-2019), and T1XX (2020-2023). All engine variants adopted this pattern, including the 6.0i with 360hp and the 6.6TD producing 445hp.
The Silverado 3500HD single rear wheel models also transitioned to 8x180 in 2011. However, 3500HD dually models use the larger 8x210mm pattern to handle increased load capacity. Across generations II through IV, the 3500HD SRW maintained consistent 8x180 fitment regardless of engine choice.
GMC's Sierra 2500HD mirrors its Chevrolet counterpart with the 8x180 pattern beginning in 2011. Earlier models from 1999-2010 used the 8x165.1 configuration. The Sierra 2500HD kept this specification through all subsequent generations, including GMT900, K2XX, and T1XX platforms.
The Sierra 3500HD SRW models feature the same 8x180 bolt pattern introduced in 2011. At Performance Plus Tire, we carry an extensive selection of wheels specifically designed for the 8x180 bolt pattern. Like their Chevrolet siblings, GMC 3500HD dually trucks require the larger 8x210mm pattern for heavy-duty applications.
The 2011 bolt pattern change sparked rapid development among wheel manufacturers. Today, heavy-duty truck owners enjoy abundant aftermarket wheel options designed specifically for these 8x180 applications.
Heavy-duty truck owners need to understand the distinct 8-lug patterns available in today's market. Each configuration serves specific vehicle makes and load requirements, making proper identification essential for wheel selection.
GM used the 8x165.1mm (8x6.5") pattern on older trucks before making the switch in 2011. This earlier pattern appears on Chevrolet Silverado 2500/3500 and GMC Sierra 2500/3500 models from previous generations. The newer 8x180mm pattern replaced this configuration exclusively on 2011 and newer GM heavy-duty trucks. These patterns are not interchangeable without adapters, and using the wrong pattern creates dangerous vibration and safety concerns.
Ford adopted the 8x170mm pattern for their Super Duty lineup starting in 1999. Ford F-250 and F-350 Super Duty trucks use this distinct configuration, making it incompatible with GM's 8x180 specification. Ford has maintained this pattern across multiple generations of their heavy-duty truck platform. The 8x170 pattern serves Ford's heavy-duty vehicles exclusively and cannot interchange with GM's 8x180mm pattern.
Commercial applications require the larger 8x200mm pattern (approximately 8x7.87") for maximum load capacity. You'll find this robust configuration on Ford F-350 Super Duty DRW (2005-2023), Ford F-450 Super Duty (2005-2023), and newer Ram 3500 (2019-2025) models. This pattern exclusively serves dual rear wheel (dually) trucks engineered for the heaviest hauling demands.
Yes, 8x6.5 and 8x165.1 represent identical bolt patterns. The difference lies only in measurement units - inches versus millimeters. Both patterns fit the same vehicles perfectly since 165.1mm converts to exactly 6.5 inches. This pattern appears on older heavy-duty GM trucks, Dodge Ram 2500/3500 (pre-2012), and various Ford E-Series vans.

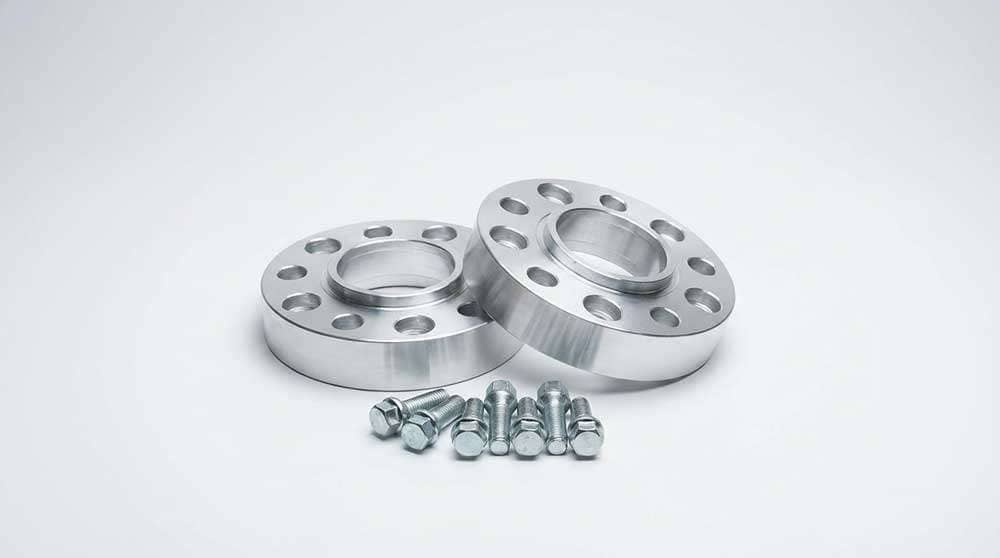

Wheel adapters provide a practical solution when you want to mount wheels that don't match your truck's original bolt configuration. These specialized components convert your vehicle's existing mounting points to accommodate different wheel specifications.
You can successfully mount 8x6.5 (8x165.1) wheels on vehicles with 8x180 bolt patterns using quality wheel adapters. These adapters convert your truck's existing configuration to accommodate the different wheel specification. Specialized adapters are available that convert specifically from 8x6.5 to 8x180 for Chevrolet and GMC heavy-duty trucks.
Proper installation ensures safe operation and prevents component damage:
Raise the vehicle using load-rated jack stands
Remove wheels and inspect rotors/drums for damage
Clean mating surfaces to ensure flush contact
Install the adapter onto your vehicle's studs
Torque adapter lug nuts to manufacturer specifications (typically 90 ft-lbs)
Mount wheels to the adapter and torque to specifications
Never use an impact wrench during installation - it can over-torque and damage components.
Both 1.5-inch and 2-inch adapters work for 8x6.5 to 8x180 conversions. The 2-inch adapters offer simpler installation since they typically don't require stud trimming. The 1.5-inch adapters might need vehicle stud trimming to ensure wheels sit flush.
Check for proper clearance during full steering motion and verify all components fit securely. Retorque all lug nuts after your first 50-100 miles of driving. At Performance Plus Tire, we offer quality adapters designed specifically for 8x180 bolt pattern vehicles.
The 8x180 bolt pattern represents a crucial specification for GM heavy-duty truck owners. This configuration appears exclusively on 2011 and newer Chevrolet Silverado and GMC Sierra 2500HD/3500HD models, delivering the strength these trucks demand for heavy-duty applications.
Each manufacturer uses distinct 8-lug patterns for their trucks. Ford relies on 8x170, while older GM models used 8x165.1. These patterns won't interchange without proper adapters, but quality adapters solve compatibility issues effectively.
Proper installation remains critical for safety. Correct torque specifications, professional installation techniques, and post-installation inspections ensure your wheels perform reliably. Check lug nut tightness after the first 50-100 miles to prevent problems.
Knowing your exact bolt pattern saves time and money whether you're replacing damaged wheels or upgrading your truck's appearance. The 8x180 pattern now has extensive aftermarket support, giving truck owners plenty of stylish and functional wheel options.
Your bolt pattern determines wheel compatibility and affects your truck's performance, safety, and appearance. With this knowledge about 8x180 fitment, you can select the right wheels for your heavy-duty GM truck with confidence.
Understanding the 8x180 bolt pattern is crucial for GM heavy-duty truck owners looking to upgrade or replace their wheels safely and effectively.
• The 8x180 bolt pattern is exclusive to 2011+ Chevrolet Silverado and GMC Sierra 2500HD/3500HD models, replacing the older 8x165.1 pattern used in previous years.
• Different manufacturers use distinct 8-lug patterns: GM uses 8x180, Ford uses 8x170, and commercial trucks often use 8x200 - these are not interchangeable without adapters.
• Wheel adapters can safely convert between bolt patterns (like 8x6.5 to 8x180), but proper installation and torque specifications are critical for safety.
• The 8-lug design with 180mm spacing provides superior load distribution and durability compared to 6-lug patterns, making it ideal for heavy-duty applications.
• Always verify your exact bolt pattern before purchasing wheels, as mismatched patterns can cause dangerous vibrations and safety issues during driving.
Proper identification of your truck's bolt pattern ensures you select compatible wheels that maintain both performance and safety standards for your heavy-duty vehicle.
The 8x180 bolt pattern is primarily found on heavy-duty GM trucks manufactured from 2011 onwards. This includes Chevrolet Silverado 2500HD and 3500HD models, as well as GMC Sierra 2500HD and 3500HD trucks.
Chevrolet made the switch from the 8x6.5 (8x165.1mm) to the 8x180 bolt pattern in 2011. This change affected their heavy-duty truck lineup, including the Silverado 2500HD and 3500HD models.
Yes, you can use wheel adapters to fit 8x6.5 (8x165.1mm) wheels on vehicles with an 8x180 bolt pattern. Specialized adapters are available to convert between these two patterns, allowing for greater wheel compatibility.
The 8x180 pattern is specific to GM heavy-duty trucks from 2011 onwards. It differs from Ford's 8x170 pattern used on their Super Duty trucks and the 8x200 pattern found on some commercial trucks. These patterns are not interchangeable without adapters.
The 8-lug design, including the 8x180 pattern, offers superior load distribution and durability compared to configurations with fewer mounting points. This makes it ideal for heavy-duty trucks designed for towing, hauling, and challenging off-road conditions.
