Just 25mm can change everything. That small adjustment in your wheel offset pushes your wheels a full inch farther out from your vehicle, completely altering both looks and performance. Understanding wheel offset means grasping how your wheels relate to your vehicle's design and function.
Offset plays a huge role when you're swapping out wheels. It decides exactly where your tires sit compared to your suspension and fender wells. Think of wheel offset as the measured distance between where your wheel bolts to the hub and the wheel's dead center. Getting this right matters because proper wheel offset puts your tire and wheel combo exactly where your vehicle needs it to be.
Here's where things get interesting - wheel offset and backspacing aren't the same thing, though plenty of car folks mix them up. Offset measures from the mounting surface to the wheel's centerline, but backspacing tells a different story. Circle track racers pay close attention to backspacing because it changes how much weight transfers to the ground through the tire.
This guide breaks down everything you need to measure wheel offset correctly, clears up the backspacing versus offset confusion, and shares the tips we've picked up over years of fitting wheels. Whether you're planning a wheel upgrade or just want to decode those numbers stamped on your current setup, you'll have all the knowledge you need.
Two measurements matter most when you're picking custom wheels: offset and backspacing. These numbers determine whether your wheels will fit properly and look the way you want them to. Get these right, and your wheels will work safely with your vehicle's suspension components while giving you the exact appearance you're after.
Offset measures the distance between your wheel's mounting surface—that's where it bolts to the hub—and the wheel's centerline, always given in millimeters. This number tells you exactly how your wheels will sit compared to your vehicle's body and suspension.
You'll encounter three types of wheel offset:
Zero offset: The mounting surface lines up perfectly with the wheel's centerline, giving you a balanced wheel position.
Positive offset: The mounting surface sits closer to the street side of the wheel, tucking the wheel inward toward your suspension components. Most modern cars, particularly front-wheel drive models, roll off the assembly line with positive offset wheels.
Negative offset: The mounting surface moves toward the back half of the wheel, pushing it outward and away from the suspension. This setup creates that sought-after "deep dish" look you see on custom trucks and performance builds.
Backspacing tells you the distance from the wheel's mounting surface to the inside lip—the back edge—usually measured in inches. Picture how far the mounting surface sits back into the wheel's hub area.

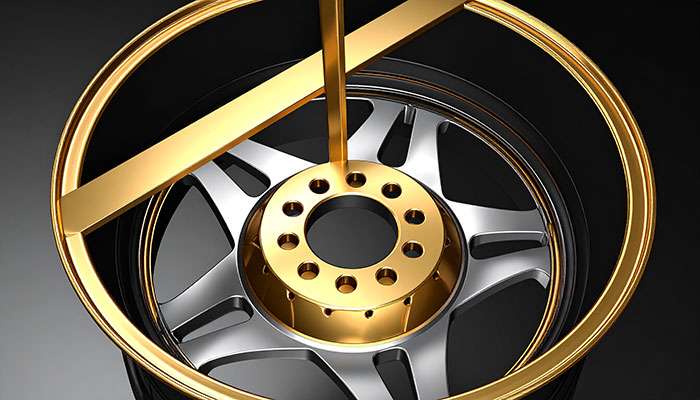

Here's how to measure it: flip the wheel face down on a flat surface, place a straight edge across the back, then measure the distance down to the mounting face. This measurement shows you how the wheel positions relative to your suspension parts.
These two measurements connect, but they work differently in important ways.
Units set them apart right away—offset uses millimeters while backspacing sticks with inches. Offset can swing positive or negative, but backspacing numbers stay positive.
They also measure from different starting points—offset works from the wheel's centerline, while backspacing starts from the wheel's rear lip. Even with these differences, both measurements ultimately tell you the same story: where your wheel's mounting surface sits.
The math between them stays pretty simple. Take a 9-inch wide wheel with +25mm offset—that wheel would have 5.5 inches of backspacing. Want to flip it around? Take your backspacing measurement, subtract half the wheel width, then convert to millimeters for your offset.
Three distinct offset types exist, each one changing how your wheels interact with your vehicle's body and suspension. Your choice between these options shapes both the visual impact and driving characteristics of your ride.
Positive offset means the mounting surface sits closer to the street side of your wheel's centerline. This setup pulls your wheels inward, tucking them toward your suspension components. Factory wheels on most modern cars use positive offset, especially front-wheel drive models and newer rear-wheel drive vehicles.
What makes positive offset appealing:
Better fuel economy thanks to less wind resistance
Clean, factory-fresh look with wheels sitting flush under fenders
Keeps your vehicle's original handling feel
But there's a catch - too much positive offset can make your tires rub against suspension parts or the inner fender, which creates real problems for both performance and safety.
Negative offset puts the mounting surface behind the wheel's centerline, toward the brake side. This creates that eye-catching "deep dish" wheel look and pushes your wheels outward, away from the suspension.
You'll see negative offset wheels on lifted trucks, off-road rigs, and vehicles where the owner wants an aggressive stance. Sand dune racers love negative offset because it widens their vehicle's footprint.
The benefits are clear - negative offset gives you a wider, more commanding presence that can actually help stability when you're tackling rough terrain. The downside? Go too far and your tires might stick out past your fenders, putting extra stress on wheel bearings and suspension parts.
Zero offset sits right in the middle - the mounting surface lines up exactly with the wheel's centerline. Picture a coin balanced perfectly on its edge - that's the idea here.
Some trucks and SUVs come with zero offset from the factory, positioning wheels flush with the vehicle body for a balanced look without going overboard. This option gives you a middle ground between aggressive styling and practical fitment.
Your offset choice completely changes how wheels and tires sit in the wheel wells, affecting everything from looks to performance. Different offsets alter your vehicle's track width, suspension geometry, and scrub radius - all key players in how your car handles.
Switch up your wheel offset and you're changing your entire suspension setup. Wider wheels usually need less offset to clear suspension components properly. Smart move? Stay within 5 millimeters of your factory offset when upgrading.
Get the offset wrong and you're asking for trouble - poor handling, premature bearing wear, and sketchy stability at highway speeds.
Getting accurate wheel offset measurements doesn't require fancy equipment or years of experience. You need a straight edge, a tape measure, and about ten minutes of your time. Here's the step-by-step process that works every time.
Start by setting your wheel on a flat surface. Pull the tire off if you can - it makes measuring much easier and more accurate. Stretch your tape measure across the wheel, going from the outside edge of one rim flange straight across to the outside edge of the opposite flange. Write down this measurement in millimeters since that's what we'll use for the final calculation.
Take that wheel width measurement and cut it in half. Simple math here - a 244mm wide wheel has its centerline at 122mm. This centerline becomes your reference point for everything else, so double-check this number before moving on.

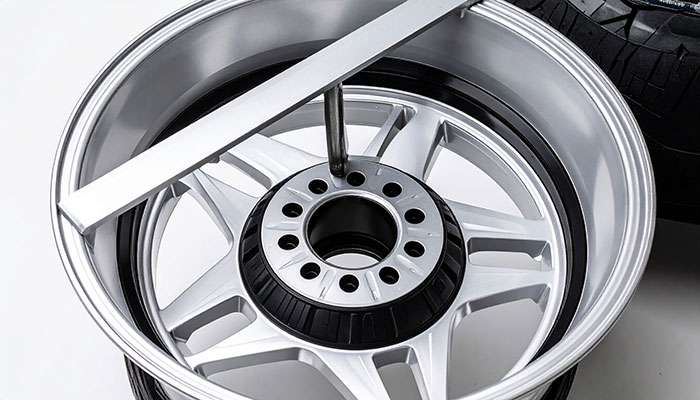

Flip the wheel so the back side faces up. Lay your straight edge across the inboard flange - the inner rim edge where it would sit closest to your vehicle. Measure from where the straight edge touches the flange down to the hub mounting surface. Most people record backspacing in inches, though you can work in millimeters if that's easier.
Here's where the magic happens. Take your backspacing measurement and subtract the centerline number from it. Using our 244mm wheel example, if backspacing measures 172mm and centerline is 122mm, you get 50mm of offset. The math tells you which direction:
Backspacing bigger than centerline = positive offset
Backspacing smaller than centerline = negative offset
Most offset specs use millimeters, so convert any inch measurements by multiplying by 25.4. Going the other way? Divide millimeters by 25.4 to get inches. Keep a calculator handy - these conversions matter for getting the right fit.
Smart shoppers check their math before buying. Online wheel fitment calculators let you plug in your current specs and compare them with potential new setups. These tools show you exactly how different wheel sizes and offsets will look on your ride, saving you from expensive mistakes and return trips.
Getting your measurements right comes down to having the right tools and knowing how to use them. You don't need anything fancy - just a few basic items and some patience will get you professional-level accuracy.
Your toolkit is pretty simple: a good tape measure or ruler, a straight edge, and if you can manage it, a wheel without the tire mounted. The work surface matters too - find something flat and level because even a small wobble can mess up your numbers. Set the wheel face down, stretch your straight edge across the back, then measure from that edge down to the mounting surface. Take a few measurements from different spots to make sure you're getting consistent results.
Manual measuring works great, but digital tools make life easier. Backspace calculator online let you plug in different wheel specs and see how they'll look on your ride. These calculators show you exactly how various wheel sizes and offsets line up with your fenders - pretty handy for avoiding surprises. When you're shopping and see wheels listed with backspacing instead of offset, conversion charts save you from doing the math yourself. These digital helpers can save you from expensive mistakes down the road.
Your owner's manual and the sticker inside your driver's door tell you what came from the factory. Most wheels also have the offset stamped right on them - look for numbers followed by "mm". Cross-checking your measurements against these factory specs helps you know you're on the right track.
The biggest error people make? Getting confused about which surface is actually the mounting surface - it's that flat area where the wheel meets the hub. Don't forget about rim lip thickness when you're measuring, and watch your units - mixing up inches and millimeters will throw everything off. Take your time with this stuff - rushing leads to mistakes, and mistakes lead to wheels that don't fit right. Even being off by a few millimeters can cause problems you don't want to deal with.
Wheel offset might seem like just another number, but it's one that can make or break your wheel upgrade. We've covered the essentials - from understanding the three offset types to getting precise measurements with basic tools.
The measurement process itself is straightforward. Five simple steps with a tape measure and straight edge give you the numbers you need. What matters most is taking your time and double-checking your work, because even small errors can cause big headaches down the road.
Here's what we always tell customers: stick close to your factory offset unless you know exactly what you're doing. That 5mm rule isn't just a suggestion - it's your safety net. Factory engineers picked those numbers for good reasons, and straying too far can affect everything from handling to bearing life.
Don't forget about the digital tools at your disposal. Offset calculators and fitment simulators take the guesswork out of wheel selection, letting you see how different setups will look and fit before you buy.
Whether you're going for a subtle refresh or a complete stance makeover, getting the offset right sets the foundation for everything else. Take the measurements, do the math, and you'll end up with wheels that look great and perform exactly as they should.
Q1. How do I accurately measure wheel offset? To measure wheel offset, first determine the wheel's overall width and centerline. Then, measure the backspacing from the mounting surface to the wheel's inner edge. Calculate offset by subtracting the centerline measurement from the backspacing. Use a straight edge and tape measure for precise results.
Q2. What's the difference between positive and negative wheel offset? Positive offset means the mounting surface is closer to the street side of the wheel's centerline, tucking the wheel inward. Negative offset positions the mounting surface behind the centerline, creating a "deep dish" look and pushing the wheel outward. Zero offset aligns the mounting surface with the centerline.
Q3. Can changing wheel offset affect my vehicle's performance? Yes, altering wheel offset can impact your vehicle's handling, stability, and suspension geometry. It affects track width and scrub radius, which are crucial for handling dynamics. Significant changes in offset can lead to increased bearing wear and compromised stability at high speeds.
Q4. Where can I find my wheel's offset specifications? You can usually find wheel offset information in your vehicle's owner's manual, on the driver's side door placard, or stamped directly on the wheel itself. The offset is typically expressed in millimeters. If you can't find it, you can measure it manually or consult a professional.
Q5. Are there any online tools to help with wheel offset calculations? Yes, there are online wheel fitment calculators and offset-to-backspacing conversion charts available. These tools can help you visualize how different wheel dimensions and offsets will fit your vehicle, and can be particularly useful when shopping for new wheels or comparing different setups.
