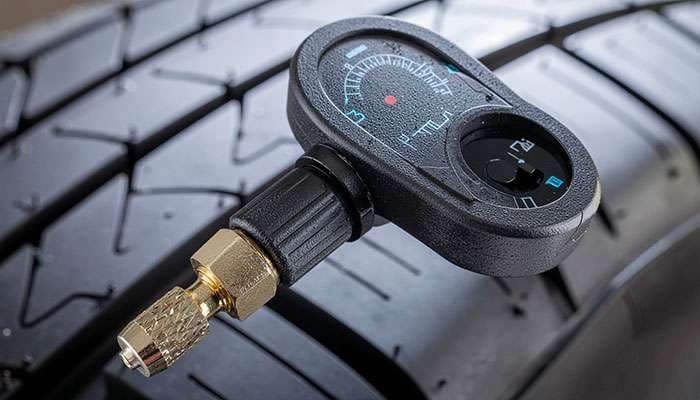

a detailed picture of TPMS Sensor

TPMS Service Required? Here's What Your Car Is Actually Telling You

Tire failures cause approximately 11,000 crashes a year in the United States. That "TPMS service required" message flashing on your dashboard isn't just another car alert you can brush off—it's your vehicle's way of telling you something important about your safety system. Since 2008, every car sold in the U.S. comes equipped with tire pressure monitoring system (TPMS) sensors, thanks to the Transportation Recall Enhancement, Accountability and Documentation (TREAD) Act.

So what exactly is a TPMS system? Think of it as your car's built-in tire pressure watchdog. This electronic system keeps tabs on the air pressure in your tires and gives you a heads-up when pressure drops to dangerous levels. The system works in one of two ways: either through sensors that sit right inside your tires measuring pressure directly, or by using your car's existing ABS system to detect pressure changes indirectly.

Here's something many drivers don't realize—those TPMS sensors have a lifespan of about 7 to 10 years. That's why you might suddenly find yourself dealing with service messages even when your tires seem fine. The sensors themselves might be calling it quits, not your tire pressure.

We get it—figuring out what your TPMS sensor actually does and what that service message really means can feel like solving a puzzle. That's exactly why we've put together this guide to walk you through everything about your tire pressure monitoring system. We'll cover why it matters for keeping you safe, and most importantly, what you should do when that warning light pops up.

The reality is that plenty of cars hit the road every day with underinflated tires. Your TPMS system is designed to catch these situations before they become dangerous. When it's working properly, it's one of your best defenses against tire-related problems on the road.

What Does 'TPMS Service Required' Actually Mean?

That glowing TPMS light on your dashboard demands attention. This isn't like your oil change reminder—when your TPMS system sends you a warning, it's directly tied to your safety.

TPMS warning light vs TPMS service message

There's a big difference between a standard TPMS warning light and a "TPMS Service Required" message, and knowing which one you're dealing with helps you respond appropriately. When your TPMS light stays on solid, you're usually looking at underinflated tires—specifically, one or more tires sitting at least 25% below the recommended pressure. Good news: this is typically a straightforward fix. Check your tire pressure and add air as needed.

Now, if you see a "Service Tire Monitor System" message or notice your TPMS light flashing, that's telling you something different entirely. When the light flashes for about 60-90 seconds before staying lit, your TPMS system itself has a problem. This means the system can't do its job of monitoring your tire pressure anymore, leaving you without this important safety feature.

Common causes behind the service alert

Several things can trigger that service alert, and understanding these helps you know what you might be dealing with:

  1. Failing sensor batteries - Each TPMS sensor runs on a small battery that lasts 5-10 years, with most averaging around 7 years. When these batteries die, you'll need new sensors.

  2. Damaged or malfunctioning sensors - Hit a nasty pothole lately? Rough roads and improper tire service can knock these delicate sensors out of commission.

  3. Control module problems - Sometimes the issue isn't with the sensors themselves but with the TPMS control module that processes their signals.

  4. Recent tire service without recalibration - Had your tires rotated or replaced recently? The system might just need a reset to recognize everything properly.

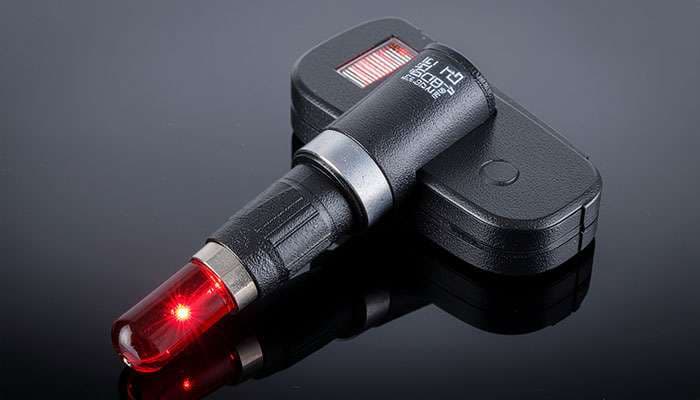

a detailed picture of TPMS Sensor

When to take immediate action

Some TPMS warnings need your immediate attention. A flashing TPMS light followed by a solid light signals a system malfunction that requires professional service. Here's something that might surprise you: research shows 42% of drivers can't even identify what the low tire-pressure warning light means, and about 10% admit they just ignore it.

Don't keep driving if your TPMS light keeps flashing. Without a working monitoring system, you won't know if your tire pressure drops dangerously low, putting you at risk for blowouts, poor fuel economy, and faster tire wear. When you're dealing with a system malfunction, a qualified service center can properly diagnose the issue and get everything working again.

How Does a TPMS Work in Your Car?

Your car's tire pressure monitoring system relies on some pretty clever technology to keep you safe and your vehicle running smoothly. Once you understand how this safety feature actually works, those "TPMS service required" messages start making a lot more sense.

Direct TPMS: In-tire pressure sensors

Direct TPMS is the more straightforward approach—it puts actual pressure sensors right inside each of your tires. You'll usually find these battery-powered sensors attached to the valve stem or mounted on the wheel rim itself. Each sensor packs quite a bit of technology into a small package: a pressure transducer, microcontroller, radio frequency transmitter, and battery management system all working together.

These sensors do exactly what you'd expect—they measure the real air pressure inside your tires and send that information wirelessly to your car's main computer. Most direct TPMS sensors use specific radio frequencies to communicate: 315 MHz here in North America and 433 MHz over in Europe. Each sensor broadcasts with its own unique ID code, so your car knows which tire is which and won't get confused by signals from other vehicles nearby.

This setup gives you some serious advantages. Your dashboard can tell you exactly which tire needs attention, and some systems even display the precise pressure reading for each tire.

Indirect TPMS: ABS-based pressure estimation

Indirect TPMS takes a completely different approach—no pressure sensors needed. Instead, this system uses your car's existing anti-lock brake system (ABS) wheel speed sensors to figure out if tire pressure is dropping. The concept is pretty smart: when a tire loses air, it gets slightly smaller in diameter, which means it has to spin faster to keep up with the other tires.

Today's indirect systems go way beyond just comparing wheel speeds. Second-generation indirect TPMS analyzes the spectrum of wheel speed data to pick up on changes in tire resonance frequency. Many of these systems also pull in data from your steering angle sensors, yaw sensors, and outside temperature readings to get better accuracy.

Differences in accuracy and maintenance

Direct TPMS gives you the most accurate information—real-time, precise pressure readings for each tire individually. It can even catch situations where all four tires are losing pressure at the same time, something indirect systems often miss completely. The downside? Higher upfront cost and you'll need to replace those sensor batteries eventually, usually after 5-10 years.

Indirect TPMS costs less to start with and doesn't have any sensors to maintain. But it comes with some real limitations. You'll need to recalibrate it after tire rotations or pressure adjustments, it can't give you exact pressure numbers, and it might throw false alarms on rough roads or if you're running mismatched tires. Any time you adjust tire pressure or change tires, you'll need to go through the recalibration process to keep the system working properly.

What to Do When the TPMS Light Comes On

That TPMS warning light on your dashboard calls for action, but don't panic. While it's definitely not something to ignore, you've got time to handle this safely and properly. The key is addressing it sooner rather than later to avoid potential tire damage or unsafe driving situations.

Step-by-step tire pressure check

Your first move? Find a safe spot to pull over. You don't need to slam on the brakes the moment you see the light, but don't push it beyond a few miles. Once you're safely stopped, here's how to check things out:

  1. Find your vehicle's recommended tire pressure—usually 30-35 PSI—printed on the driver's door jamb or listed in your owner's manual

  2. Check your tires when they're "cold," meaning the car has been parked for at least three hours

  3. Remove the valve cap from each tire

  4. Press a good tire pressure gauge firmly on the valve stem until that hissing sound stops

  5. Read and write down the pressure measurement

  6. Compare what you measured with the recommended PSI

  7. Add air to reach the proper pressure

  8. Check your spare tire too if it has a TPMS sensor

Keep in mind that your TPMS system won't warn you until pressure drops about 25% below what's recommended. That's why checking your tire pressure regularly—even when the light isn't on—makes good sense.

How to reset the TPMS light manually

Most of the time, once you've got your tires properly inflated, that light should disappear on its own. Sometimes it happens right away, other times after you drive for a bit. If it's being stubborn, try these reset tricks:

  • Take a drive at 50 mph for about 10 minutes, then turn off the car and restart it

  • Look for the TPMS reset button (usually hiding under the dashboard or in the glove compartment). Turn your ignition to "on," press and hold that button until the light blinks three times, then restart your car

  • When all else fails, check your owner's manual for your specific vehicle's reset procedure

When to visit a mechanic

Sometimes you need professional help, and that's perfectly normal. Here's when it's time to head to a qualified shop:

  • The light flashes for about 60-90 seconds before staying solid—that's your car telling you the system itself has a problem

  • You've inflated your tires correctly and tried the reset procedures, but the light won't budge

  • You recently had tire work done and the light won't turn off

  • Your tire pressures check out fine, but the light keeps coming back (this often means sensor batteries are dying)

Remember, those TPMS sensors typically run strong for 5-10 years before needing replacement, mainly because their batteries eventually run out of juice.

TPMS Sensor Maintenance and Relearn Procedures

Taking care of your TPMS components means your safety system stays reliable for years to come. When you understand how these parts work and what they need, you can stay ahead of potential issues before those warning lights start flashing.

a detailed picture of TPMS Sensor

What is a TPMS sensor and how long it lasts

A TPMS sensor is essentially a small computer that sits inside your tire. Each one contains several key parts: a pressure transducer, microcontroller, radio frequency transmitter, and battery management system. These sensors send unique identification codes to your vehicle's ECU, so your car can keep track of each tire separately.

Most direct TPMS sensors will serve you well for 5-10 years, with the typical lifespan hitting around 7 years. Here's what's interesting about these sensors—they don't gradually lose their effectiveness like brake pads or other wear items. They work perfectly fine right up until the battery gives out.

Battery life and replacement timeline

Those TPMS sensor batteries are lithium-ion cells that come sealed inside the sensor unit—you can't just pop them out and replace them. How long they last depends on a few different things. Your driving style makes a difference—sensors work harder during stop-and-go city driving compared to steady highway cruising. Weather plays a part too. Cold temperatures actually help extend battery life, while hot climates can drain them faster. The sensors also transmit more data when you're driving versus when the car is parked.

Once one sensor battery dies, many tire shops recommend replacing all four sensors at once. It might seem like overkill, but it saves you from paying mounting and balancing fees multiple times as the other sensors reach the end of their lives.

Relearn methods: Manual, OBDII, and trigger tools

After you get new sensors or rotate your tires, your TPMS system needs to relearn which sensor belongs to which wheel position. There are three main ways to do this:

  1. Auto Relearn: Drive your car for a set amount of time and speed (usually 5-20 minutes) and the system figures things out on its own.

  2. Stationary/Manual Relearn: This involves a specific sequence of steps that varies by manufacturer—things like turning the key a certain number of times or pressing the brake pedal. Once the car is in learn mode, a technician uses a trigger tool to activate each sensor.

  3. OBDII Relearn: A TPMS tool connects directly to your car's diagnostic port to program the sensor IDs into the ECU. This method is common on Asian, European, and some domestic vehicles.

Seasonal pressure changes and recalibration

Your tire pressure changes with the weather—it drops when temperatures get cold. For every 10°F temperature drop, you'll lose about 1-2 PSI. This means you'll often need to recalibrate your TPMS system when seasons change.

After you adjust your tire pressure for seasonal changes, follow your vehicle's specific recalibration procedure from the owner's manual. Honda owners, for example, typically press the TPMS button until the indicator light blinks twice, then drive for about 30 minutes at speeds between 30-60 mph. Each manufacturer has their own process, so it's worth checking your manual to get it right.

Conclusion

When it comes down to it, understanding your TPMS system is really about keeping you safe on the road. We've walked through what that "TPMS service required" message means, how your monitoring system actually works, and what you should do when those warning lights show up. The bottom line? These warnings aren't something to brush off.

TPMS technology has been a game-changer for road safety since it became mandatory in 2008, helping prevent thousands of tire-related accidents. Whether your car has direct sensors sitting inside each tire or uses the indirect system that works with your ABS, keeping everything maintained properly means this safety feature will be there when you need it.

Keep in mind that those sensors will eventually need replacement after 5-10 years when their batteries give out. Weather changes will also affect your tire pressure throughout the year, so you might need to recalibrate the system from time to time. And if you have any tire work done, make sure the shop follows the proper relearn procedures to keep everything working correctly.

Some drivers think they can just ignore TPMS warnings, but that's asking for trouble. You're looking at increased blowout risk, worse gas mileage, and tires that wear out faster than they should. Our advice? Take care of those illuminated lights right away—whether it's a simple pressure check or getting professional help when the system itself has problems.

Your tires are the only thing connecting your car to the road. Keeping them properly inflated with a working TPMS system isn't just about performance—it's about getting you and your family home safely. Now you know what to do when that dashboard warning pops up, so you can handle it with confidence.

FAQs

Q1. What does the TPMS service required message mean? The "TPMS service required" message indicates a malfunction within the tire pressure monitoring system itself, rather than just low tire pressure. This usually means the system can no longer reliably warn you about dangerous tire pressure conditions and requires professional attention.

Q2. How long do TPMS sensors typically last? TPMS sensors generally last between 5 to 10 years, with an average lifespan of about 7 years. Their longevity is primarily determined by the life of their non-replaceable batteries.

Q3. What should I do if my TPMS light comes on? When the TPMS light illuminates, find a safe place to pull over and check your tire pressures. Inflate the tires to the recommended pressure if needed. If the light persists after proper inflation and reset attempts, it's advisable to visit a mechanic.

Q4. How does temperature affect tire pressure? Temperature changes significantly impact tire pressure. For every 10°F drop in temperature, tire pressure typically decreases by 1-2 PSI. This means you may need to recalibrate your TPMS system during seasonal transitions.

Q5. Can I replace TPMS sensors myself? While it's possible to replace TPMS sensors yourself, it's often best left to professionals. The process requires specialized tools and knowledge to properly install and program the new sensors. Additionally, improper installation can damage the sensors or compromise tire safety.
